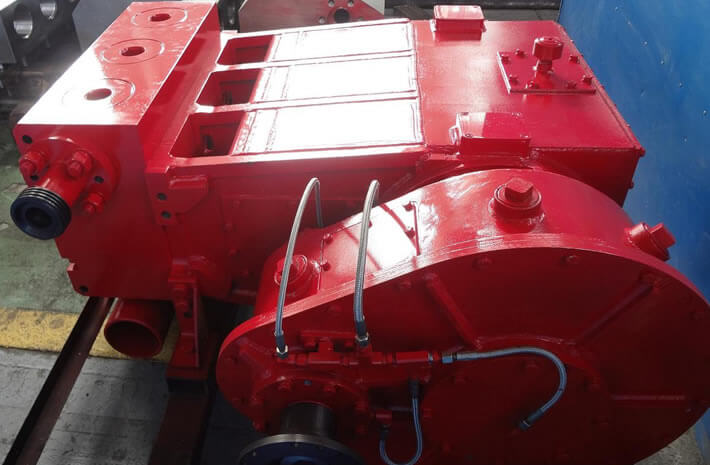

TWS600 Well service Triplex pump
Description
TWS600/ TWS600S pumps are designed for intermittent duty well service applications including acidizing, cementing, and gravel packing.
The pump is a reciprocating triplex plunger pump and rated at 600 Brake horsepower input maximum.
Stroke Length: 6 inches
Rated Max. Brake HP : 600BHP (447KW)
Maxim Rod Load: 100,000lbs
Gear Ratio: 4.61:1
Pump Weight: 4940lbs approx.
Fluid end sizes available in plunger diameter: 2 1/2” (63.5mm), 2 3/4” (69.9mm), 3”(76.2mm), 3 1/2”(88.9mm), 4” (101.6mm), 4 1/2” (114.3mm).
Some parts we can provide as bellow:
SPM Triplex and Quintuplex Pumps:
• TWS 600• TWS 2000• TWS 2250 • QWS1000 • QWS 2500• QWS 2800

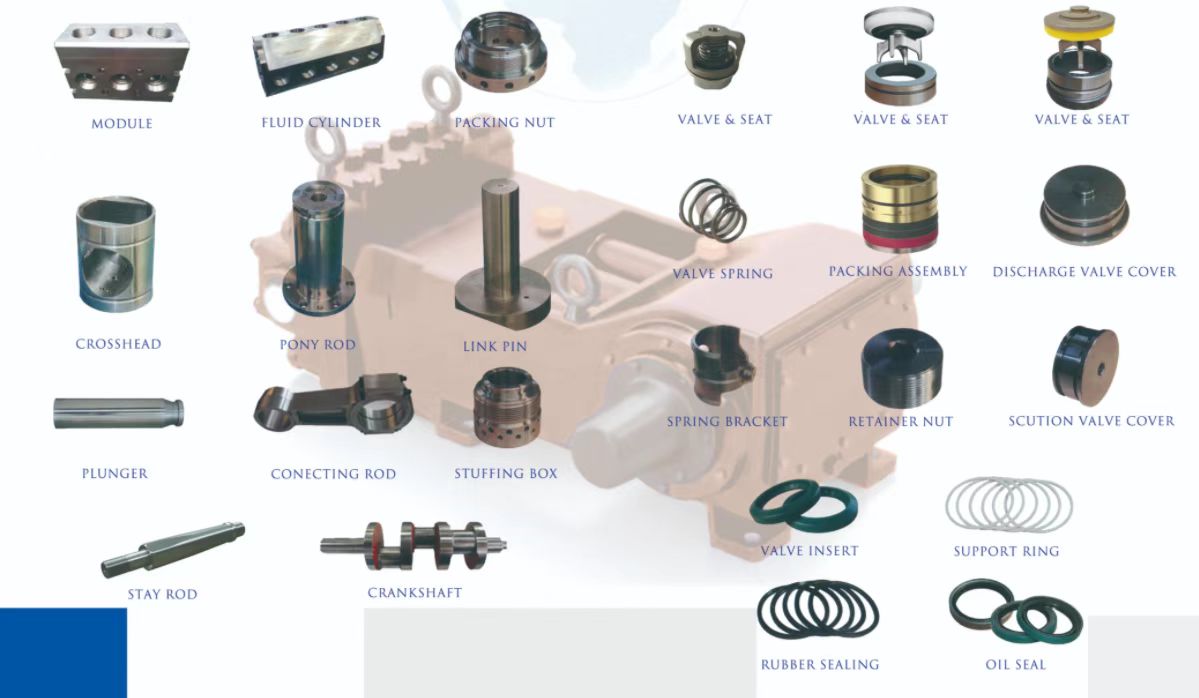

Power ends:Cross head, connecting rod, bearings, bull gears and shaft, crankshaft.

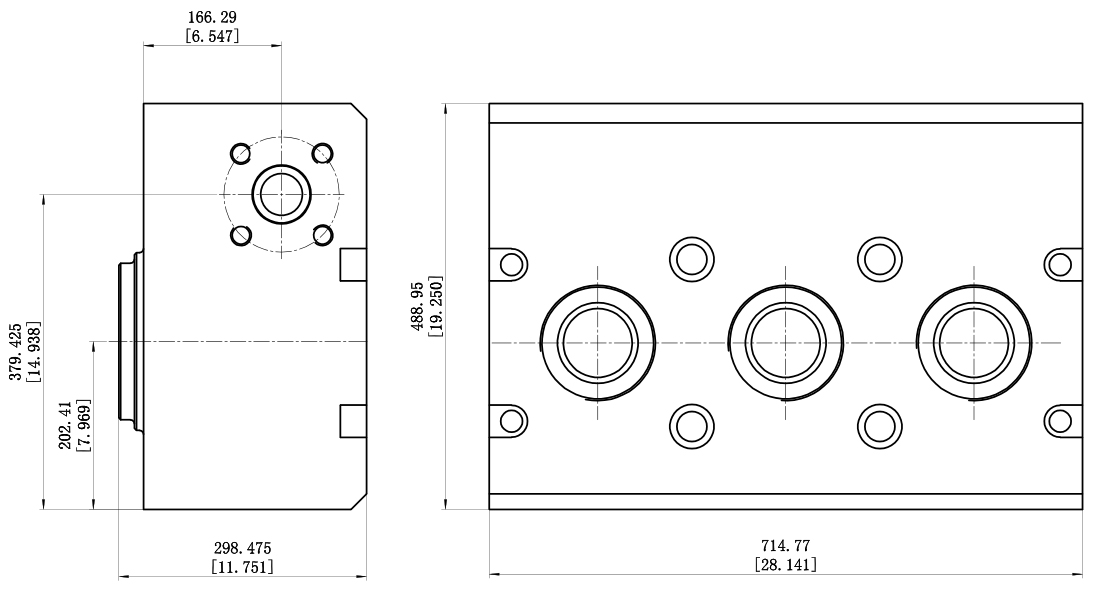

Fluid ends:Plungers, Valves&seats, packing, retainers, flange, etc
Real Photo Show:
