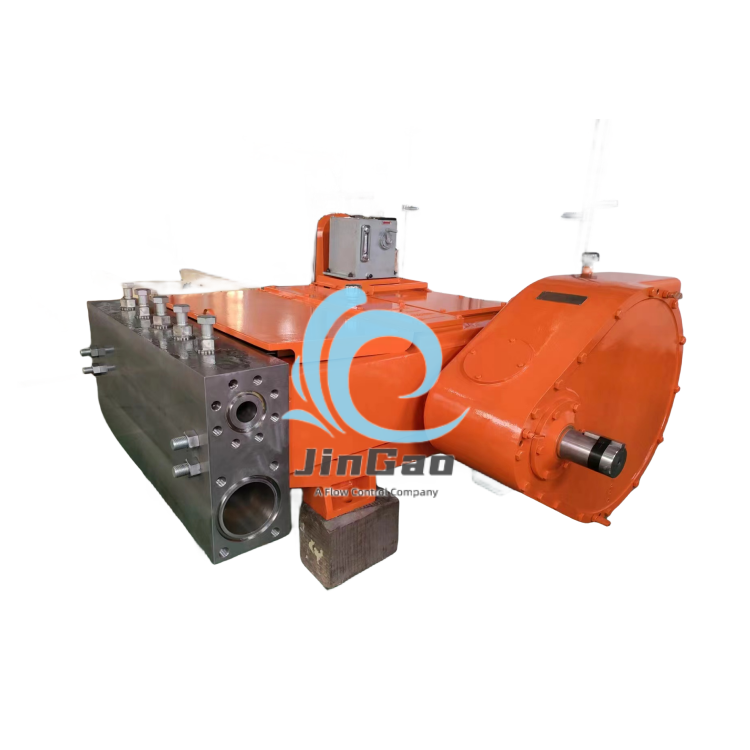

Nov 415Q-5 Reciprocating Plunger Pumps spare parts
Description
We can provide the 415Q-5 Pump parts
415Q-5 Quintuplex power pumps are offered with fluid cylinders of nickel-aluminum bronze, forged carbon steel or duplex stainless
steel.
415Q-5 Quintuplex power pumps are offered with fluid cylinders of nickel-aluminum bronze, forged carbon steel or duplex stainless
steel.

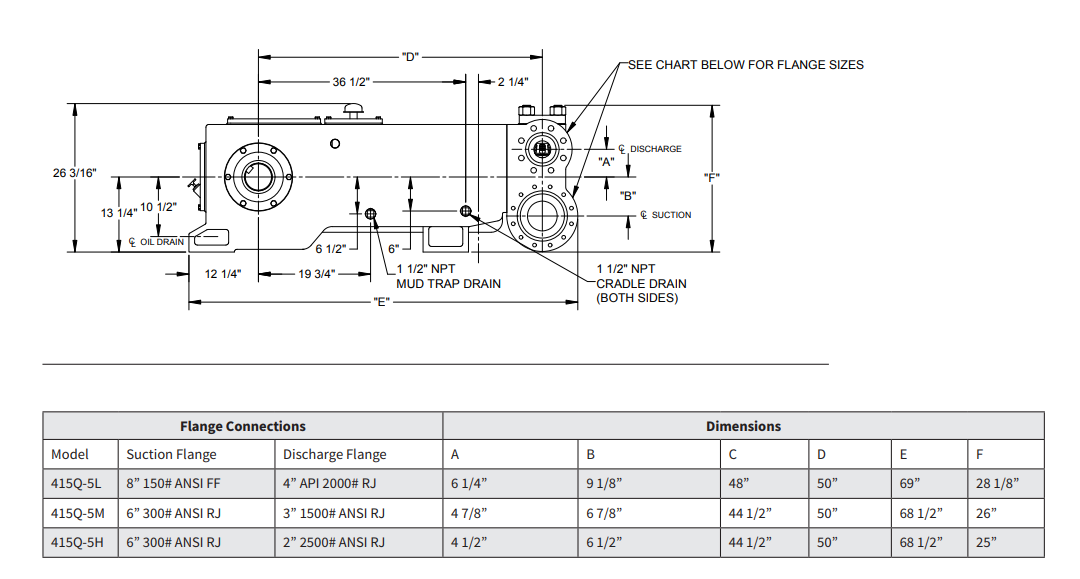

Specifications• Pump size maximum plunger size x stroke length,in. (mm): 4.5 x 5 (102 x 127)• Rated bhp at 400 rpm (kw): 415 (309)• Rated plunger load, lbs (Kg): 14855 (6738)• Maximum discharge pressure: psi (kPa)L- model: 1660 (11,445)M- model: 3025 (20,857)H-model: 5000 (34,474)• Crankshaft extension: in. (mm)Diameter: 4.875 (123.8)Length long side: 11 11/16 (297)Length short side: 5 5/8 (143)Keyway (width x depth): 1 1/4 x 5/8 (32 x 16)Maximum recommended sheave in. (mm): 58 (1473)Minimum recommended sheave in. (mm): 36 (914)
Bellow is a list of the standard plungers that we Supply.
SPM Triplex and Quintuplex Pumps:
TWS 600 ,TWS 2000, TWS 2250 , QWS1000 , QWS 2500, QWS 2800
Halliburton HT400 plunger pump
Serva TPA600 pump, TPA-400 plunger pump ,TPB-600 plunger pump.
GD-2500 Quintuplex Plunger Pump
TWS 600 ,TWS 2000, TWS 2250 , QWS1000 , QWS 2500, QWS 2800
Halliburton HT400 plunger pump
Serva TPA600 pump, TPA-400 plunger pump ,TPB-600 plunger pump.
GD-2500 Quintuplex Plunger Pump
Etc
