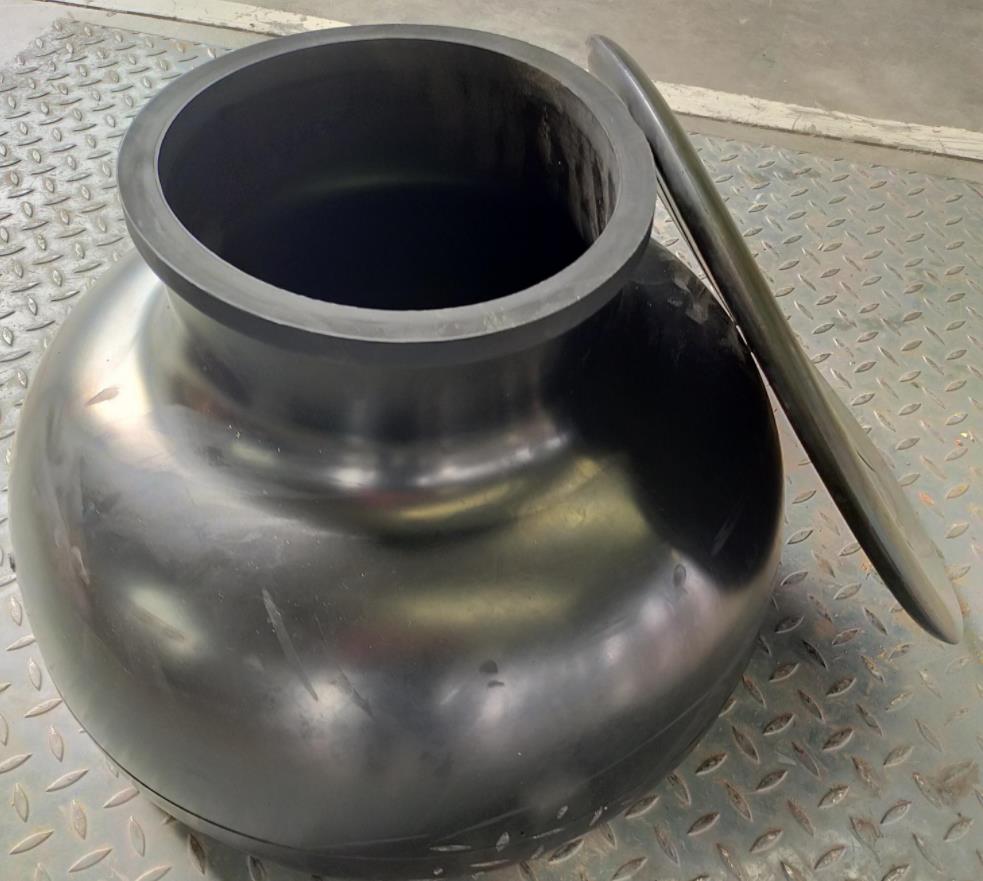

Air Bladder For Drilling Mud Pump F-1000/1300/1600
API 7K Oilfield Oil Well Drilling Mud Pump Spare Parts Air Bag Pulsation Dampener Bladder

The air bladdder is also called the exhaust air bladder and is installed at the end of the hydraulic end discharge pipe,Its working pressure is 80% of the working pressure of the mud pump.
The F500/F800 mud pump uses a KB45 air bag and the F1000/1300/1600 uses a KB75 air bag. It is worth noting that, when removing air bags, they must be depressurized.

The function of the air bag capsule on the mud pump is to use the volume of the air bag itself to continuously store and compensate the liquid discharged to a part of the pump in the pipeline to reduce the passiveness due to the pumped liquid. When the instantaneous displacement of the mud pump increases above its average displacement, the instantaneous pressure in the discharge line rises, and the gas volume in the air bag is compressed.

Size	Outer diameter of the bottom bot D1/mm	Outer diamter of the above mouth D2/mm	Inner diameter of the above mouth D3/mm	Height H/mm	Mouth edge thickness h/mm	Chassis Number
F-1300/1600 (KB-75)	530	279	240	378	16	1
3NB-1000/1300 (3NB)	590	314	280	286	23	1
F-500/800/1000 (KB-45)	445	235	196	332	16	1
SL-1300A	465	270	240	250	21	1
600Pump	530	300	260	350	30	1
KB-25	368	203	162	297	15	-
350Pump	350	216	190	250	20	-
