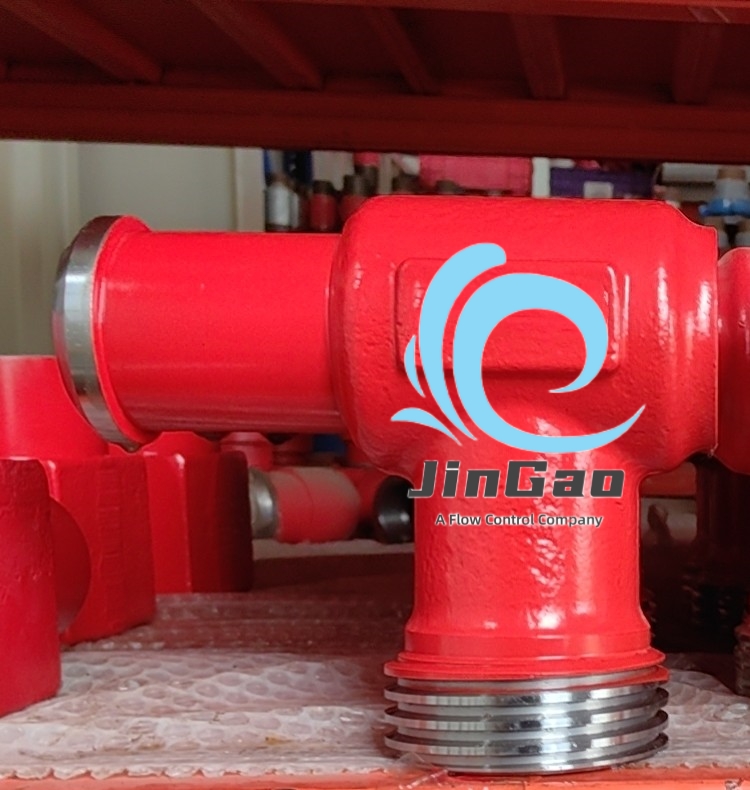

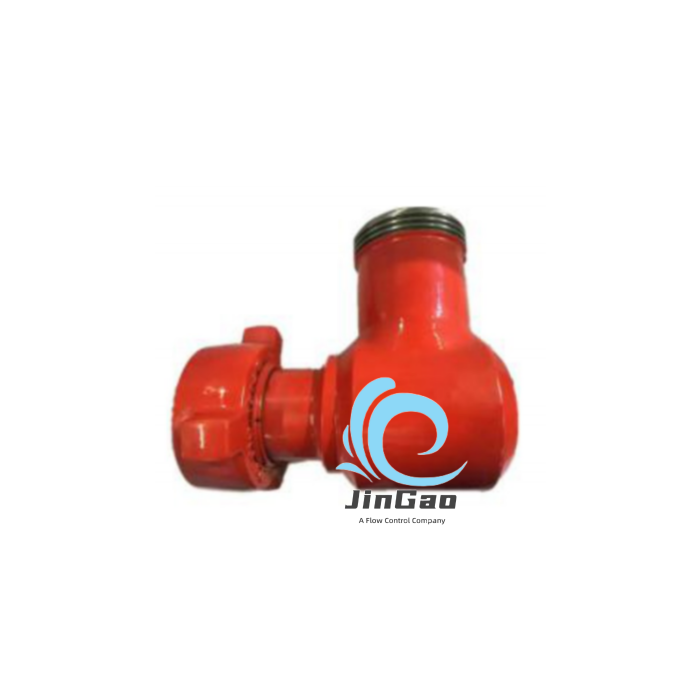

90 degree fig 1502 elbow
Description
Oilfield API 6A 2 inch 3 inch forged high pressure pipe fittings 90 degree fig 1502 elbow
Product Name: Integral Fittings ELBOW
Size: 2", 3", 4"Pressure Rating: 6000 PSI, 10000 PSI, 15000 PSI
Material: AISI 4130 Integral Forged
Working Temperature: -29°C~121°C.
End Connection: Fig 602, Fig 1502, Fig 2002, F X M (Female x Male), M X M (Male x Male) ,etc
Integral Connection
The Long Sweep Elbow - Long Radius Elboware designed especially for high-pressure abrasive applications such as fracturing, choke-and-kill lines, cementing and circulating hoses, acidizing and test lines. They are easily handle severe fracturing fluids, radical temperature extremes, and high flow rates that are common on unconventional shale plays.
Design Features1.Integral Fittings are made by high-strength alloy steel characterized by high pressure bearing and long life span;
2. After heat treatment hardening and tempering, it shows good surface gloss;
3.Thread is made by imported tooling, thus it has good sealing;
4.The terminal end is connected by union, which ensures convenient and fast use.

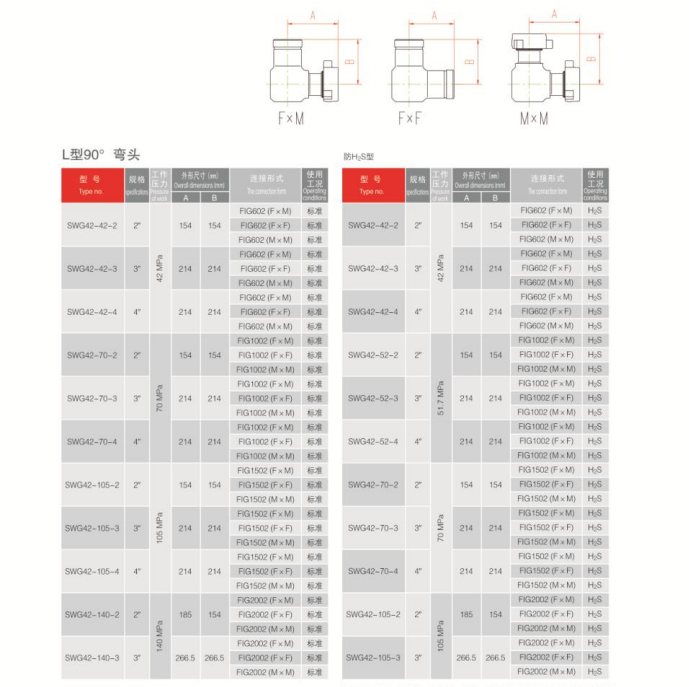

Other Integral Fittings
|
Production name
|
Size
|
working environment
|
Buckle model
|
|
long sweep elbow
|
2"
3" |
42Mpa(6000psi)
70Mpa(10000psi) 105Mpa(15000psi) |
F×M,M×M,F×F,Welding type
|
|
right angle elbow
|
|||
|
Tee
|
FMF,FMM,FFM,FMF,MMM,FFF,Welded fitting
|
||
|
Y-tee
|
MFF,Welded fitting
|
||
|
manifold tee
|
MFF,FFF,Welded fitting
|
||
|
cross tee
|
FFFF,FFMF,FFMM,FMMM,FMMF,MMMM,Welded fitting
|
||
|
manifold cross
|
MFFF
|
||
|
integral fitting
|
2" ×3"
2" ×4" 3" ×4" |
Terminal connection type:
fig602-fig1002 fig602-fig1502 fig1002-fig1502 |
Adapter: F×M,F×F,M×F,B×F, M×P,flange fitting×union,Welded fitting
|
|
Remark: Each terminal end of Integral fittings can be customized in size (reducing nipple)
“F”-threaded joint, “M”-sphere joint, “B”-Internal thread, “P”-male thread How to place an order: cross tee-3"×105Mpa(15000psi) - FFMM |
|||
FAQ
Why choose you
We a Technology enterprise focus on the Flow control product.base ourselves products, we cooperate with other
factories from China to provide high-quality oil and gas equipment products to the world according the wide customer resource.
factories from China to provide high-quality oil and gas equipment products to the world according the wide customer resource.
We only provide the quality product to you,you know,In the drilling and oilfield industry, No accident is trivial,Safety is the first things.
Please send us your inquiry with detail item description or with Model number.
If there is no packing demand we take it as our regular exported standard packing.
We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
You send us your detail requirement, we provide quotation to you.
Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request.
The information you may like to know before Payment:
1. Methods of Payment:
T/T (Telegraphic Transfer),Alibaba pay or L/C at sight
2. Shipping way
Small order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
3. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
