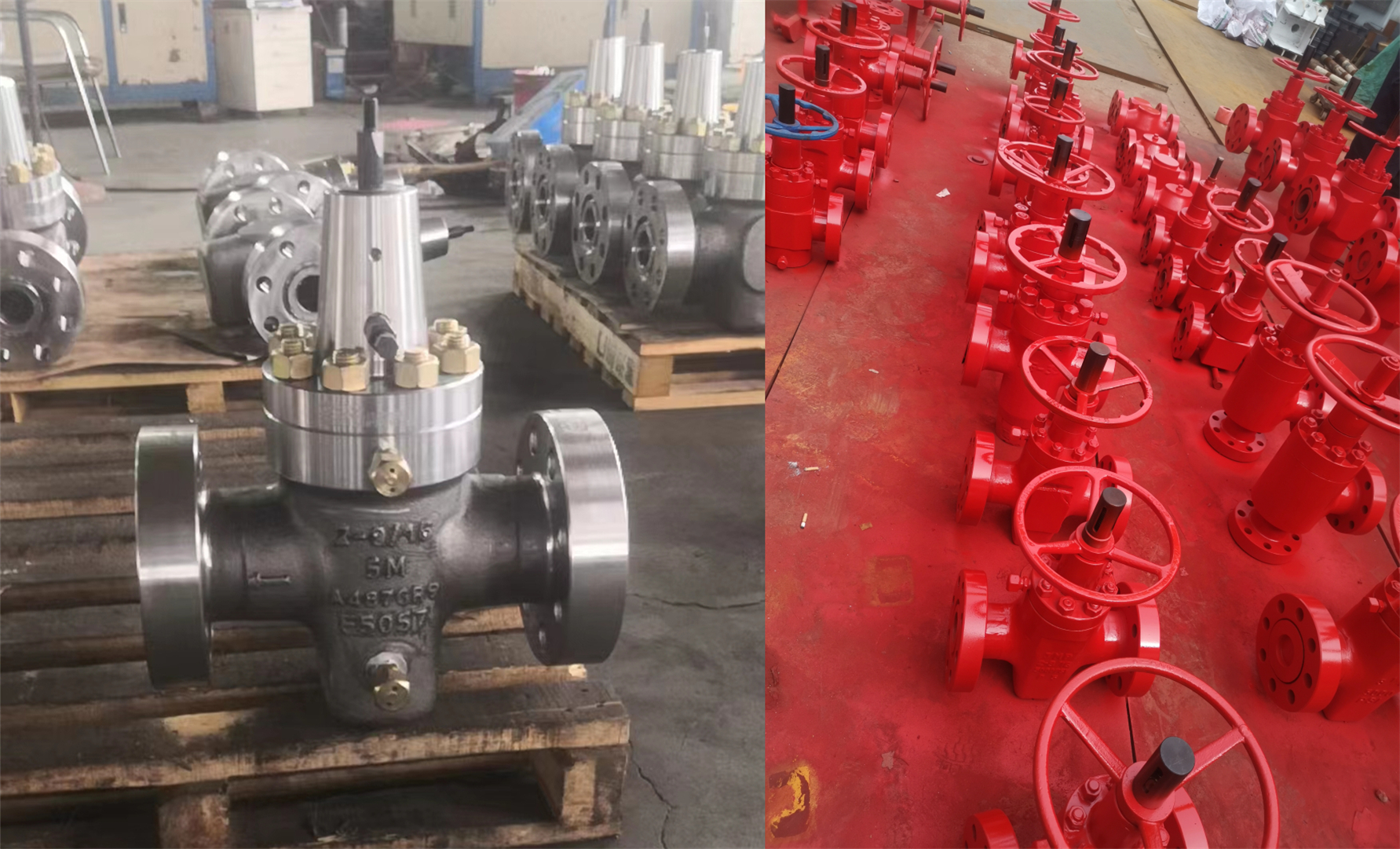

WKM Expanding Gate valve
Description
Product Description
JinGao Petro provide API 6A Expanding Gate Valves consists of one gate body and related gate segment. The contact surface between are designed to milled V structure. API 6A Expanding Gate Valves are available in sizes 2-1/16 "through 4-1/16". working pressure of 2000 psi through 5000 psi.

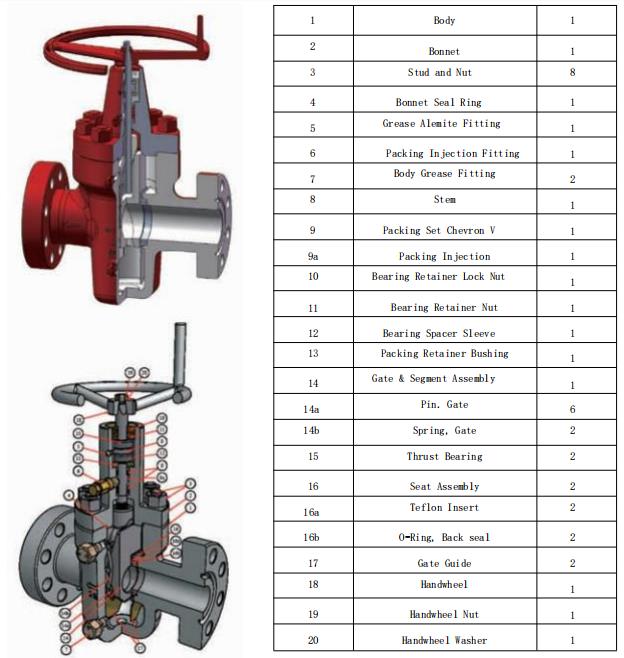

API 6A Expanding Gate Valves Features
The upper/lower roller thrust bearing minimizes operation torque;
Seats can be lubricated from grease injection fitting to reduce abrasion and promote long life;
Non-rising stem design minimize operation space
Dimensions for Flanged End Expanding Valve
A: Range face to face
B: Bore centerline to bottom of valve
C: Bore centerline to handwheel top
D: Handwheel Diameter
2000 psi Working Pressure
| Size | Bore(mm) | A(mm) | D(mm) | B(mm) | C(mm) | Weight(kg) |
| 2-1/16' | 52.4 | 295 | 280 | 125 | 470 | 45 |
| 2-9/16’ | 65.1 | 233 | 330 | 150 | 475 | 60 |
| 3-1/8' | 79.4 | 359 | 330 | 190 | 550 | 100 |
| 4-1/16’ | 103.2 | 435 | 405 | 435 | 425 | 160 |
3000 psi Working Pressure
| Size | Bore(mm) | A(mm) | D(mm) | B(mm) | B(mm) | Weight(kg) |
| 2-1/16' | 52.4 | 371 | 330 | 125 | 475 | 50 |
| 2-9/16' | 65.1 | 422 | 330 | 150 | 490 | 95 |
| 3-1/8’ | 79.4 | 435 | 400 | 190 | 550 | 150 |
| 4-1/16' | 103.2 | 511 | 480 | 240 | 635 | 260 |
| 7-1/16’ | 179.4 | 714 | 760 | 355 | 615 | 260 |
5000 psi Working Pressure
| Size | Bore(mm) | A(mm) | D(mm) | B(mm) | C(mm) | Weight(kg) |
| 2-1/16’ | 52.4 | 371 | 330 | 130 | 470 | 75 |
| 2-9/16’ | 65.1 | 422 | 330 | 150 | 550 | 105 |
| 3-1/8’ | 79.4 | 473 | 400 | 190 | 555 | 150 |
| 4-1/16’ | 103.2 | 549 | 480 | 240 | 635 | 280 |
| 7-1/16’ | 179.4 | 813 | 760 | 355 | 715 | 600 |

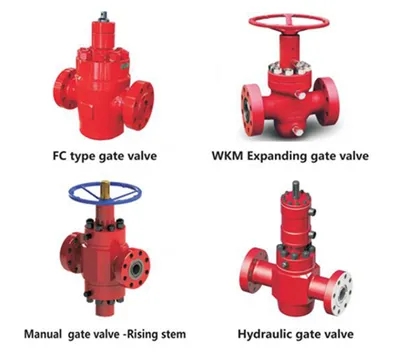

Other related Gate Valve
