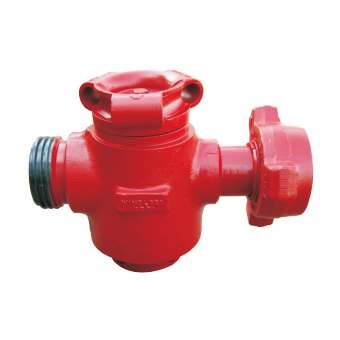

SPM/FMC Type Plug Valve

Plug Valve

JinGao Petro provide API 6A standard Plug Valve with standard Male and Female end connections, and a standard service rating up to 15000psi NSCWP. Plug valve provides flow control for oilfield applications such as cementing, fracturing, aciding, coiled tubing, sand control, and manifold trailers. Manual and Hydraulic operation available for standard and sour gas application. To meet the level standard of PLS3 and PR2, and can be interchangeable with SPM’s products.

Specification
Nominal Size · 1" ~ 4"
Temperature Rating -29t~ 121t(PU) -46t~ 121t(LU) Service· Stan dard、Sour Gas
Manufacturing standard·API 6A , NACE MR0175
Cold working pressures: 42Mpa (6000Psi), 70Mpa (10000Psi), 105Mpa (15000Psi).
Connection type: hammer union (Fig.602, Fig.1002, Fig.1502 MXM, MXF, and FXF), LP female thread and LP external thread and the plug valve with bottom base can be designed upon the client’s request.

Plug Valve Repair Kit Interchangeability
Plug valve repair kits can be provided for standard service, or low temperature and sour gas condition. These repair kits are replaceable and interchangeable for Weir SPM™, which is including plug, seal segment, side segment, elastomer seals, and grease fittings.(Also we have FMC type plug valve to replacement with FMC Brand)
