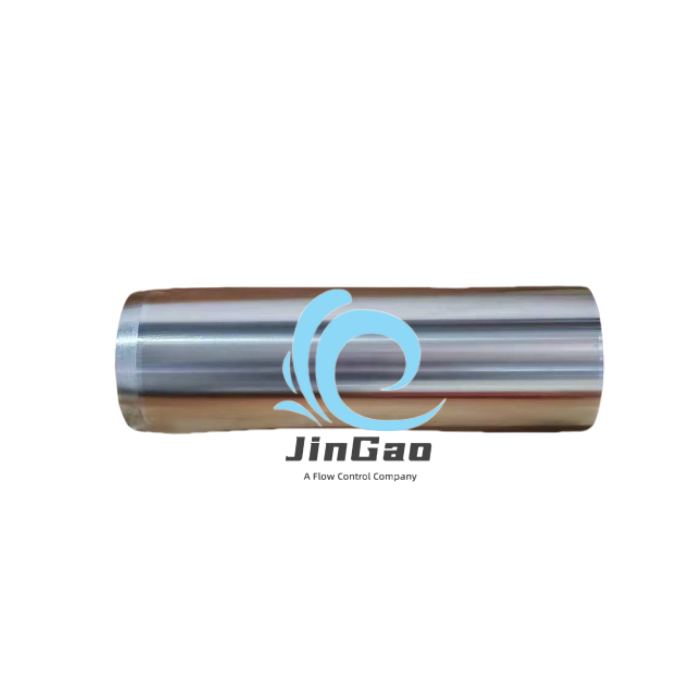

HT400 Pump plunger

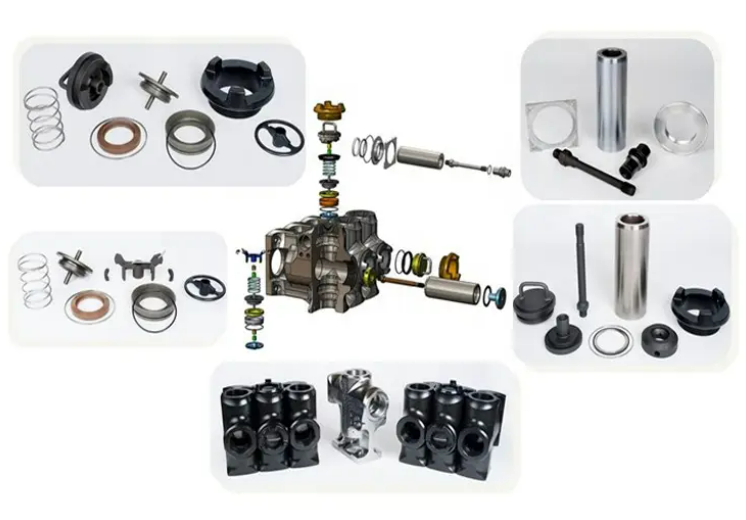

JinGao Petro Provide aftermarket replacement fluid end parts for HT400 cementing plunger pumps.
This includes Suction Valve Assembly, Discharge Valve Assembly and Plunger Packing Assembly.
Fluid End Expendables for HT 400 Pump available for Plunger sizes 3.3/8”, 4.0”, 4.5”
Email:Info@jingaopetro.com
This includes Suction Valve Assembly, Discharge Valve Assembly and Plunger Packing Assembly.
Fluid End Expendables for HT 400 Pump available for Plunger sizes 3.3/8”, 4.0”, 4.5”
| Push Rod Subassembly | |||||
| Part No. | |||||
| Retainer,Push Rod HT-400TM, Two Piece Nose, L-Spacer | 316.21066. | ||||
| O-Ring, 90 Duro, 1 7/8 × 1 5/8 × 1/8, 568-223 | 8.34020. | ||||
| Tie Rod, Push Rod, L-Spacer, HT-400TM | 316.25166. | ||||
| Push Rod, Two Piece, L-Spacer, HT-400TM | 316.21065. | ||||
| Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400TM | 316.10012. | ||||
| Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400TM | 316.10013. | ||||
| O-Ring, 70 Duro, 5 11/16 × 5 1/2 × 3/32, 568-161 | 70.33739. | ||||
| Seal, Push Rod, L-Spacer, HT-400TM | 316.10014. | ||||
| Fluid-end/flange discharge section subassembly | |||||
| Plunger Size | |||||
| 3-3/8 inch | 4-inch | 4-1/2 inch | |||
| Flange, discharge, HT-400TM, BLANK | 316.22980. | 316.22980. | |||
| Flange, discharge, HT-400TM, CURVED, Rright Hand | 316.21676. | 316.23019. | 316.23019. | ||
| Flange, discharge, HT-400TM, CURVED, Left Hand | 316.21677. | 316.23017. | 316.23017. | ||
| Seal, Discharge passage,HT-400TM | 315.27117. | 316.2547. | 316.2547. | ||
| Nut, 1-14NF, Internal Wrenching, 1.03 TL | 316.11621. | 316.11621. | 316.11621. | ||
| Stud, HT-400TM Fluid End To Thick Discharge Flange | 316.23013. | 316.23013. | |||
| Bolt, Tie, 1.375-12 UNF×32.4 in.,Top, Fluid End, HT-400TM, TC | 316.27488. | 316.27488. | 316.27488. | ||
| Nut, Top Tie Bolt, HT-400TM, TC | 316.25501. | 316.25501. | 316.25501. | ||
| Washer, Hardened,2.31 O.D ×1.43I.D.,For Top Tie Boldt, | 316.22493. | 316.22493. | 316.22493. | ||
| Spacer, Inner, Discharge Passage Seal,HT-400TM | 316.2145. | 316.2545. | 316.2545. | ||
| Fluid End Section, HT-400TM PUMP,Not Sleeved | 316.21951. | 316.22982. | 316.23951. | ||
| Nut, Elastic, Stop,3/4-in.,16 NF | 70.32760. | 70.32760. | |||
| Discharge Valve Subassembly | |||||
| Plunger Size | |||||
| 3-3/8 inch | 4-inch | 4-1/2 inch | |||
| Retainer, Cover, HT-400TM | 316.2102. | 316.2202. | 316.2202. | ||
| Cover, Discharge, Double Guided Valve, HT-400TM | 316.2107. | 316.23091. | 316.23091. | ||
| Gasket, Discharge Valve & Cylinder Head Cover, HT-400TM | 316.21052. | 316.22052. | 316.22052. | ||
| Ring, Spacer, Discharge Valve & Cylinder Head Cover, HT-400TM | 316.21051. | 316.22051. | 316.22051. | ||
| Liner, Two Piece Bushing, Valve Guide, HT-400, Brass | 316.22005. | 316.22005. | 316.22005. | ||
| Insert, Two Piece Bushing, Valve Guide, Special, HT-400 | 316.22004. | 316.22004. | 316.22004. | ||
| Spring, Valve, HT-400TM, 36lb/in | 316.2108. | 316.2108. | 316.2308. | ||
| Valve, HT-400, Frac | 316.21007. | 316.21007. | 316.22048. | ||
| Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) | 316.21048. | 316.21048. | 316.22046. | ||
| Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) | 316.21006. | 316.21006. | 316.22049. | ||
| Seat Valve, HT-400TM, Tapered | 316.21008. | 316.21008. | 316.210047. | ||
| O-ring, 90 Duro | 8.34037. | 8.34037. | 8.34041. | ||
| Suction Valve Subassembly | |||||
| Plunger Size | |||||
| 3-3/8 inch | 4-inch | 4-1/2 inch | 5-inch | 6-inch | |
| Retainer, Stop and Spring, HT-400TM, Mach. Cast | 316.22977. | 316.22977. | 316.22242. | 316.25840. | 316.25840. |
| Boot, Suction and Stop, HT-400TM | 316.25233. | 316.25233. | 316.25233. | 316.25233. | 316.25233. |
| Spring, Lock, HT-400 | 316.2125. | 316.2125. | 316.22252. | 316.22253. | 316.22253. |
| Liner, Two Piece Bushing, Valve Guide, HT-400TM, Brass | 316.22005. | 316.22005. | 316.22005. | 316.22007. | 316.22007. |
| Insert,Two Piece Bushing, Valve Guide, Special,HT-400TM | 316.22004. | 316.22004. | 316.22004. | 316.22006. | 316.22006. |
| Retainer Guide Bushing, HT-400, Tapered Seat Bore | 316.21096. | 316.21096. | 316.23953. | 316.24043. | 316.24043. |
| Plunger/cylender Head Cover Subassembly | |||||
| Plunger Size | |||||
| 3-3/8 inch | 4-inch | 4-1/2 inch | 5-inch | 6-inch | |
| Retainer, Cover HT-400TM | 316.2102. | 316.2102. | 316.2202. | 316.2502. | 316.2506. |
| Cover, Cylinder Head, HT-400TM | 316.2107. | 316.2107. | 316.2207. | 316.2407. | 316.2507. |
| Gasket, 4 Discharge Valve & Cylinder Head Cover | 316.21052. | 316.21052. | 316.22052. | 316.25052. | 316.25074. |
| Ring, Spacer, Discharge Valve & Cylinder Head Cover | 316.21051. | 316.21051. | 316.22051. | 316.25051. | 316.25073. |
| Nose, Plunger, HT-400TM | 316.2131. | 316.2231. | 316.2331. | 316.2331. | 316.2331. |
| Seal, Plunger Nose Assembly, HT-400TM | 316.2130. | 316.2230. | 316.2330. | 316.2330. | 316.2330. |
| Plunger, Hard Surface, L-Spacer, HT-400TM | 316.21026. | 316.22294. | 316.23085. | 316.24296. | 316.25162. |
| Tie Rod, Plunger, HT-400TM | 316.21028. | 316.21028. | 316.21028. | 316.25165. | 316.25165. |
| Adapter, Pushrod, HT-400TM, Two Piece Nose | 316.21059. | 316.22302. | 316.23089. | 316.24336. | 316.25172. |
