FC Gate Valve
Description
FC MANUAL GATE VALVE
(Interchangeable with Cameron Model FC Gate Valve)

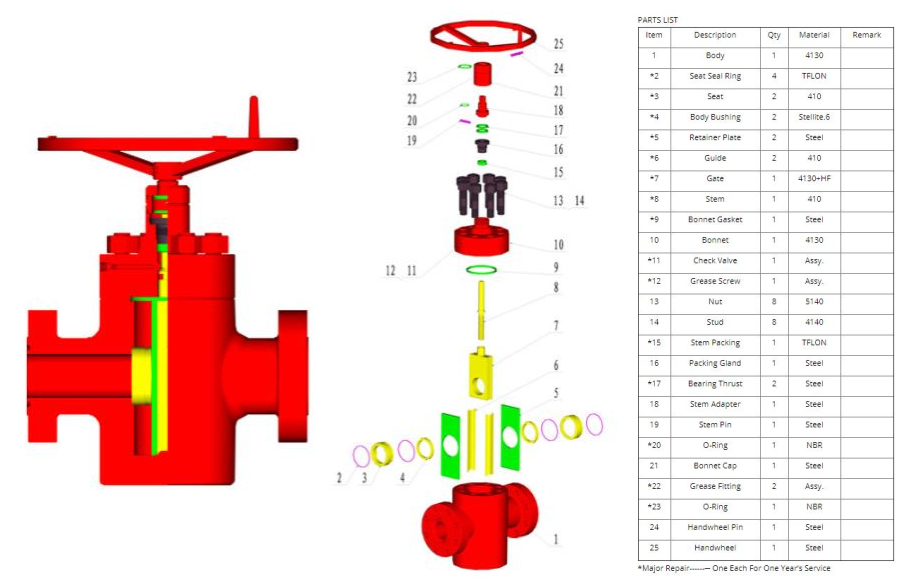

The FC gate valve features a non-rising stem with a slab gate, Full-Bore Thru-Conduit Design, Floating Slab Gate and Seats , floating seat ring body bushing design to provide safe dependable service. It is available in flanged or threaded ends in standard bore sizes from 1-13/16” thru 7-1/16” in working pressures of 5,000 psi thru 15,000 psi wp. Seat rings, body bushings, gate, stem are easily replaced in the field, Simple routine maintenance program limits repairs, eases operation, protects against corrosion, and extends service life.
SPECIFICATION
● Manufactured and Tested in Accordance with API Spec 6A
● Forged Steel Body and Bonnet
● A True Bi-Directional Valve
● Low Operating Torque
● Quick Release Hand Wheel
● API Spec 6A PSL, 1, 2, 3
● Material Class DD, EE, FF, to NACE MR-01-75
| Bore Size | 1 13/16” – 9” |
| Working Pressure | 2,000psi – 20,000psi |
| Material Class | AA - HH |
| Working Temperature | 75°F - 350°F |
| PSL | 1 - 4 |
| PR | 1 - 2 |
| Type | Cameron FC Type |
| Available from 5000 psi to 15,000 psi in all Full-Bore Sizes |
