Mission magnum pump impeller

JinGao Petro provides a wide range of open type impeller(Mission magnum I series) and semi open impeller(2500 series and MCM 250 series) for heavy duty centrifugal pumps from 3 x 2 x 13 to 10 x8 x 14.


We have ductile iron, hard iron, high chrome iron material for option, if the quantity is ok, we accept to the customized impeller in bronze, stainless steel and other special material not popular used.

All impellers are investment cased or resin-casted with pickling (acid washing) as our power-end parts, which are also available in cast steel in favor of ductile. All other sizes are resin-casted with pickling (acid washing) to ensure smooth surface finish.To ensure quality, JinGao Petro meticulously check threaded holes by fitting their bolts to ensure the threads are clean and clear.

All casings are of course pressure tested and all impellers and dynamic balanced. Each casing is properly pressure tested prior to shipping.

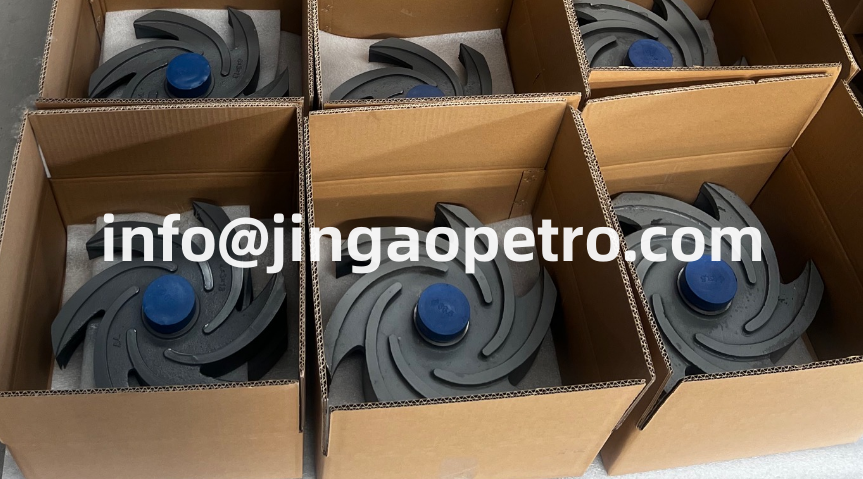

It is our standard to deliver all of our impellers in foam molded packing in boxes. If your company has any specific packaging requirements, from branding of castings to box labels, please let us know.
We can supply the popular brand replaceable impellers, the below part po. for your confirmation the interchangeability.

Parts Number as refer:

– 250-2X3X13 Impeller 122523IXXX
– 250-3X4X13 Impeller 122534IXXX
– 250-4X5X14 Impeller 122545IXXX
– 250-5X6X11 Impeller 122556IXXX
– 250-5X6X14 Impeller 122564XXX
– 250-5X6X11 Impeller 1225681XXX
– 250-6X8X14 Impeller 122568IXXX

– 250-2X3X13 Impeller P25D233MRXXX
– 250-3X4X13 Impeller P25D343MRXXX
– 250-4X5X14 Impeller P25D454MRXXX
– 250-5X6X11 Impeller P25D561MRXXX P25561DR10SO
– 250-5X6X14 Impeller P25D564MRXXX
– 250-5X6X11 Impeller P25D681MRXXX
– 250-6X8X14 Impeller P25D684MRXXX

*Impeller, 3 x 2 x 13, 2.5 centrifugal pump 05213571x
*Impeller, 4 x 3 x 13, 2.5 centrifugal pump 05213581x
*Impeller, 5 x 4 x 14, 2.5 centrifugal pump 05213591x
*Impeller, 6 x 5/8 x 6 x 11, 2.5 centrifugal pump 05213601x
*Impeller, 6 x 5 x 14, 2.5 centrifugal pump 05213621x
*Impeller, 8 x 6 x 14, 2.5 centrifugal pump 05213631x

Impeller 2″x3″x13″ Hard Iron, WITH HOLE: P25D233MRxxx, 19204-XX-30, 17650-XX-112, 1225231XX, 05213571X, H2521-90-30
Impeller 3″x4″x13″ Hard Iron, WITH HOLE: P25D343MRxxx, 19206-XX-30, 17651-XX-112, 1225341-XX, 05213581X, H2522-90-30
Impeller 4″x5″x14″ Hard Iron, WITH HOLE: P25D454MRxxx, 19224-XX-30, 17652-XX-112, 1225451-XXX, 05213591X, H2525AO-30
Impeller 6″x5″x11″ Hard Iron, WITH HOLE: P25D561MRxxx, 19121-XX-30, 17653-XX-112, 1225561-XXX, 05213601X, H2524-70-30
Impeller 6″x5″x14″ Hard Iron, WITH HOLE: P25D564MRxxx, 19121-XX-30, 17654-XX-112, 1225561-XXX, 05213621, H2524-AO-30
Impeller 6″x8″x11″ Hard Iron, WITH HOLE: P25D561MRxxx, 19121-XX-30, 17653-XX-112, 1225661-XXX, 05213601X, H2524-70-30
Impeller 6″x8″x14″ Hard Iron, WITH HOLE: P25D684MRxxx, 19116-XX-30, 17656-XX-112, 1125681-XXX, 05213631X, H2525-A)-30

Impeller, 14×12 Clockwise Rot.22″ 24024-X0-HS \ 24024-X0-AY 662005003 \ 662005010
Impeller, 12×10 Clockwise Rot.23″ 25010-Y0-30 \ 25010-X0-AY 662005002 \ 662005024
Impeller, 8×6 Clockwise Rot.18″ 2592-T0-30 \2592-T0-AY 662005018 Impeller, 14×12 Clockwise Rot.22″ 24024-X0-HS \ 24024-X0-AY 662005003 \ 662005010
Impeller, 12×10 Clockwise Rot.23″ 25010-Y0-30 \ 25010-X0-AY 662005002 \ 662005024
Impeller, 8×6 Clockwise Rot.18″ 2592-T0-30 \2592-T0-AY 662005018

19204-XX-30 19204-XX-AZ 19204-XX-04 19204-XX-13 Impeller, 3x2x13 641215603
19206-XX-30 19206-XX-AZ 19206-XX-04 19206-XX-13 Impeller, 4x3x13 641217005
19224-XX-30 19224-XX-AZ 19224-XX-04 19224-XX-13 Impeller, 5x4x14 641217831
19121-XX-30 19121-XX-AZ 19121-XX-04 19121-XX-13 Impeller, 6x5x11 641211602
19121-XX-30 19121-XX-AZ 19121-XX-04 19121-XX-13 Impeller, 6x5x14 641212105
19121-XX-30 19121-XX-AZ 19121-XX-04 19121-XX-13 Impeller, 8x6x11 641211602
19116-XX-30 19116-XX-AZ 19116-XX-04 19116-XX-13 Impeller, 8x6x14 641209903
21867-XX-30 21867-XX-AZ 21867-XX-04 21867-XX-13 Impeller, 10x8x14 641221007
