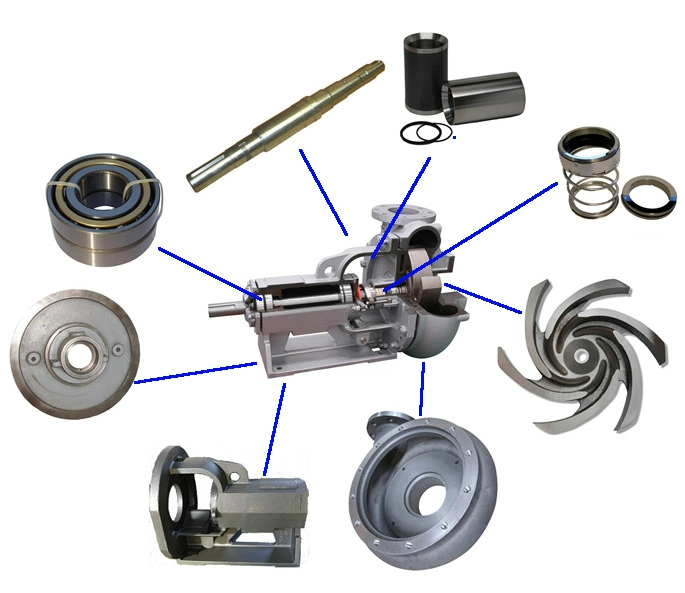

Mission Pump spare parts No.
We provide Mission Pump spares, Mission magnum I series,2500 Series,Xp Series.
Parts No. as bellow
Impeller
- 250-2X3X13 Impeller 122523IXXX
- 250-3X4X13 Impeller 122534IXXX
- 250-4X5X14 Impeller 122545IXXX
- 250-5X6X11 Impeller 122556IXXX
- 250-5X6X14 Impeller 122564XXX
- 250-5X6X11 Impeller 1225681XXX
- 250-6X8X14 Impeller 122568IXXX
- 250-2X3X13 Impeller P25D233MRXXX
- 250-3X4X13 Impeller P25D343MRXXX
- 250-4X5X14 Impeller P25D454MRXXX
- 250-5X6X11 Impeller P25D561MRXXX P25561DR10SO
- 250-5X6X14 Impeller P25D564MRXXX
- 250-5X6X11 Impeller P25D681MRXXX
- 250-6X8X14 Impeller P25D684MRXXX
*Impeller, 3 x 2 x 13, 2.5 centrifugal pump 05213571x
*Impeller, 4 x 3 x 13, 2.5 centrifugal pump 05213581x
*Impeller, 5 x 4 x 14, 2.5 centrifugal pump 05213591x
*Impeller, 6 x 5/8 x 6 x 11, 2.5 centrifugal pump 05213601x
*Impeller, 6 x 5 x 14, 2.5 centrifugal pump 05213621x
*Impeller, 8 x 6 x 14, 2.5 centrifugal pump 05213631x
Impeller 2″x3″x13″ Hard Iron, WITH HOLE: P25D233MRxxx, 19204-XX-30, 17650-XX-112, 1225231XX, 05213571X, H2521-90-30
Impeller 3″x4″x13″ Hard Iron, WITH HOLE: P25D343MRxxx, 19206-XX-30, 17651-XX-112, 1225341-XX, 05213581X, H2522-90-30
Impeller 4″x5″x14″ Hard Iron, WITH HOLE: P25D454MRxxx, 19224-XX-30, 17652-XX-112, 1225451-XXX, 05213591X, H2525AO-30
Impeller 6″x5″x11″ Hard Iron, WITH HOLE: P25D561MRxxx, 19121-XX-30, 17653-XX-112, 1225561-XXX, 05213601X, H2524-70-30
Impeller 6″x5″x14″ Hard Iron, WITH HOLE: P25D564MRxxx, 19121-XX-30, 17654-XX-112, 1225561-XXX, 05213621, H2524-AO-30
Impeller 6″x8″x11″ Hard Iron, WITH HOLE: P25D561MRxxx, 19121-XX-30, 17653-XX-112, 1225661-XXX, 05213601X, H2524-70-30
Impeller 6″x8″x14″ Hard Iron, WITH HOLE: P25D684MRxxx, 19116-XX-30, 17656-XX-112, 1125681-XXX, 05213631X, H2525-A)-30
Impeller, 14x12 Clockwise Rot.22" 24024-X0-HS \ 24024-X0-AY 662005003 \ 662005010
Impeller, 12x10 Clockwise Rot.23" 25010-Y0-30 \ 25010-X0-AY 662005002 \ 662005024
Impeller, 8x6 Clockwise Rot.18" 2592-T0-30 \2592-T0-AY 662005018 Impeller, 14x12 Clockwise Rot.22" 24024-X0-HS \ 24024-X0-AY 662005003 \ 662005010
Impeller, 12x10 Clockwise Rot.23" 25010-Y0-30 \ 25010-X0-AY 662005002 \ 662005024
Impeller, 8x6 Clockwise Rot.18" 2592-T0-30 \2592-T0-AY 662005018
19204-XX-30 19204-XX-AZ 19204-XX-04 19204-XX-13 Impeller, 3x2x13 641215603
19206-XX-30 19206-XX-AZ 19206-XX-04 19206-XX-13 Impeller, 4x3x13 641217005
19224-XX-30 19224-XX-AZ 19224-XX-04 19224-XX-13 Impeller, 5x4x14 641217831
19121-XX-30 19121-XX-AZ 19121-XX-04 19121-XX-13 Impeller, 6x5x11 641211602
19121-XX-30 19121-XX-AZ 19121-XX-04 19121-XX-13 Impeller, 6x5x14 641212105
19121-XX-30 19121-XX-AZ 19121-XX-04 19121-XX-13 Impeller, 8x6x11 641211602
19116-XX-30 19116-XX-AZ 19116-XX-04 19116-XX-13 Impeller, 8x6x14 641209903
21867-XX-30 21867-XX-AZ 21867-XX-04 21867-XX-13 Impeller, 10x8x14 641221007
Housing
- 250-2X3X13 Housing Assembly 142523HAS
- 250-3X4X13 Housing Assembly 142534HAS
- 250-4X5X14 Housing Assembly N/A
- 250-5X6X11 Housing Assembly 1425561HAS-11
- 250-5X6X14 Housing Assembly 1425561HAS-14
- 250-6X8X11 Housing Assembly N/A
- 250-6X8X14 Housing Assembly 142568HAS
- 250-2X3X13 Housing Assembly P25D233H
- 250-3X4X13 Housing Assembly P25D343H
- 250-4X5X14 Housing Assembly P25D454H
- 250-5X6X11 Housing Assembly P25D561H
- 250-5X6X14 Housing Assembly P25D56H
- 250-6X8X11 Housing Assembly P25D681H
- 250-6X8X14 Housing Assembly P25D684H
- Casing 3 x 2 x 13 repair kit 052134000
- Casing 4 x 3 x 13 repair kit 052134100
- Casing 5 x 4 x 14 repair kit 052134200
- Casing 6 x 5 x 11 repair kit 052134300
- Casing 6 x 5 x 14 repair kit 052134400
- Casing 8 x 6 x 11 repair kit 052134500
- Casing 8 x 6 x 14 repair kit 052134600
- Wear pad 4 x 3 x 13 repair kit 052134700
- Wear pad 5 x 4 x 14 repair kit 052134800
- Wear pad 6 x 5 x 11 repair kit 052134900
- Wear pad 6 x 5 x 14 repair kit 052135000
- Wear pad 8 x 6 x 11 repair kit 052135100
- Wear pad 8 x 6 x 14 repair kit 052135200
19203AH Casing Repair Kit 3 x 2 x 13 (Includes Hard Iron Casing, Casing Gasket, Casing Studs and Nuts
19205AH Casing Repair Kit 4 x 3 x 13 (Includes Hard Iron Casing, Casing Gasket, Casing Studs and Nuts
19222AH Casing Repair Kit 5 x 4 x 14 (Includes Hard Iron Casing, Casing Gasket, Casing Studs and Nuts
19122AH Casing Repair Kit 6 x 5 x 11 (Includes Hard Iron Casing, Casing Gasket, Casing Studs and Nuts
19123AH Casing Repair Kit 6 x 5 x 14 (Includes Hard Iron Casing, Casing Gasket, Casing Studs and Nuts
19763AH Casing Repair Kit 8 x 6 x 11 (Includes Hard Iron Casing, Casing Gasket, Casing Studs and Nuts
19117AH Casing Repair Kit 8 x 6 x 14 (Includes Hard Iron Casing, Casing Gasket, Casing Studs and Nuts
Casing assembly, 14x12x22 24022-01-30A \ 24022-01-AY 651120206 \ 662001007
Casing assembly, 12x10x23 25008-01-30A \ 25008-01-AY 662001001 \ 662002099
Casing assembly, 8x6x18 25289-02-30A \ 25289-02-AY 662002089
Housing Assembly 2″x3″x13″ Hard Iron: P25D233H, 19203-01-30A, 17690-002, 142523HAS, 05213400, H19203-01-30A
Housing Assembly 3″x4″x13″ Hard Iron: P25D343H, 19205-01-30A, 17680-002, 142534HAS, 052134100, H19205-01-30A
Housing Assembly 4″x5″x14″ Hard Iron: P25D454H, 19222-01-30A, 17681-002, 052134200, H19222-01-30A
Housing Assembly 5″x6″x14″ Hard Iron: P25D564H, 19123-01-30A, 17683-002, 142556HAS-14, 052134400, H19123-01-30A
Housing Assembly 6″x8″x11″ Hard Iron: P25D681H, 19763-01-30A, 17684-002, 052134500, H19763-01-30A
Housing Assembly 6″x8″x14″ Hard Iron: P25D684H, 19117-01-30A, 17685-002, 142568HAS, 052134600, H19117-01-30A
Housing Stud w/nut: P25HSN, 3862-76/3932-61, 17649/5327-034, 15-250-HSN, B16092121000048& 19052121000000, WWHS1S3HA & WWJ11S800, H2507-3 & H3932-61
19203-01-30A 641101753 Casing assembly, 3x2x13
19205-01-30A 641101902 Casing assembly, 4x3x13
19222-01-30A 641102058 Casing assembly, 5x4x14
19122-01-30A 641101456 Casing assembly, 6x5x11
19123-01-30A 641101605 Casing assembly, 6x5x14
19763-01-30A 641102157 Casing assembly, 8x6x11
19117-01-30A 641101308 Casing assembly, 8x6x14
20937-01-30A 641102322 Casing assembly, 10x8x14
