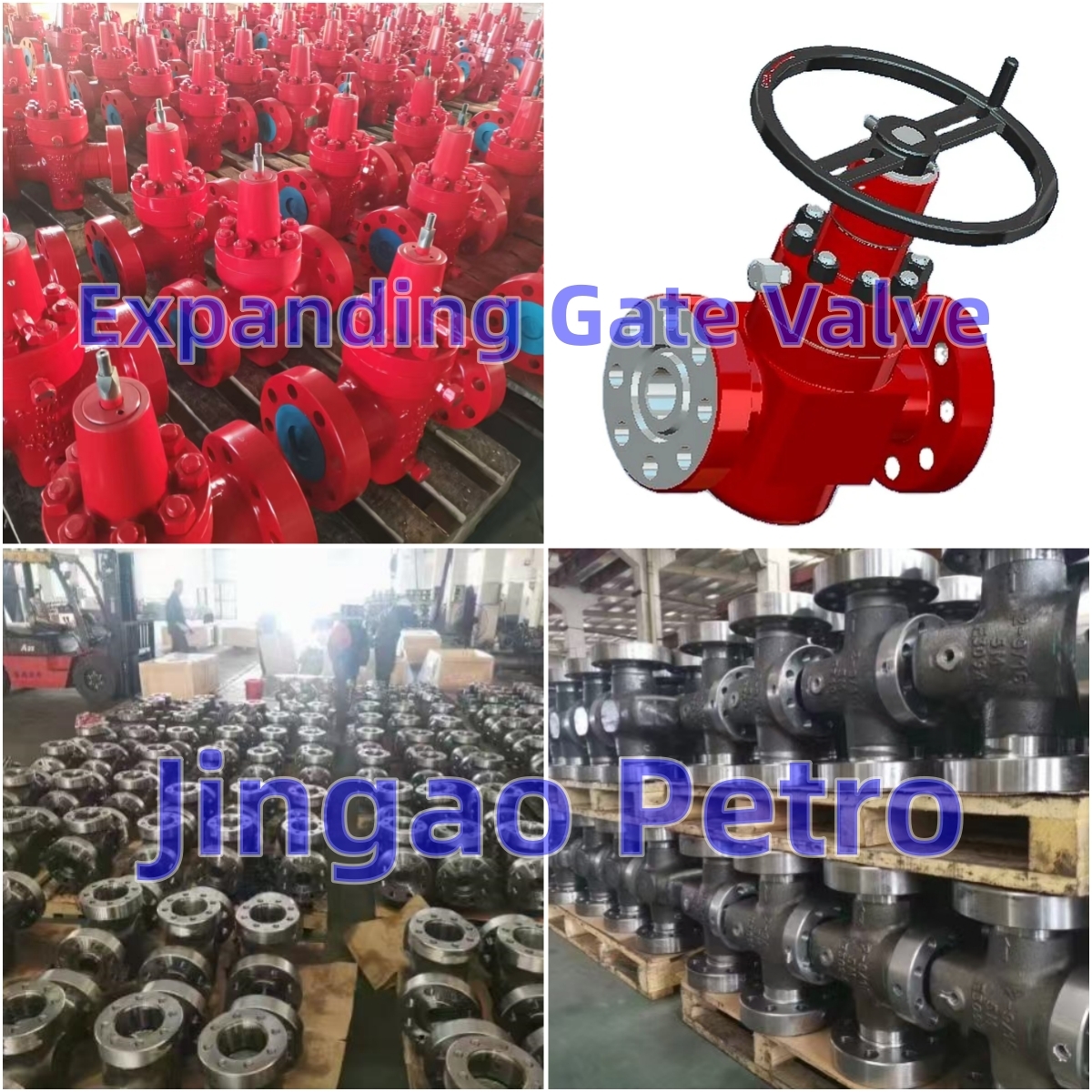

Api6a Expanding Gate valve
JinGao Petro supply API 6A Expanding Gate Valve,it is consists of one gate body and related gate segment. The contact surface between are designed to milled V structure. Size are available in sizes 2-1/16 "through 4-1/16". working pressure of 2000 psi through 5000 psi.
API 6A Expanding Gate Valves are commonly used in oil and gas production, refining, and petrochemical industries. These valves are designed to provide a reliable and tight shut-off in high-pressure and high-temperature environments.
Features
The upper/lower roller thrust bearing minimizes operation torque;
Seats can be lubricated from grease injection fitting to reduce abrasion and promote long life;
Non-rising stem design minimize operation space
Bore Size: 2-1/16 Inch, 2-9/16 Inch, 3-1/8 Inch, 4-1/16 Inch

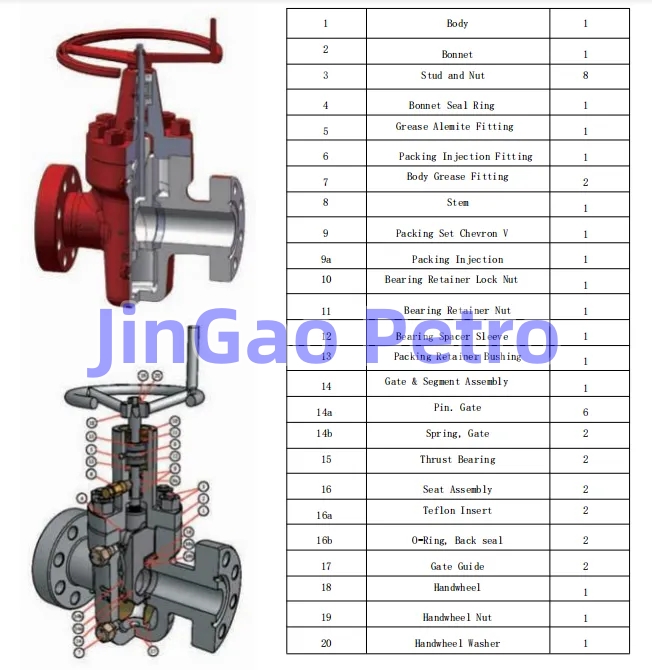

Main Parts: Valve Body, Bonnet, Expanding Gate, Seat
Body & Bonnet Material: AISI 4130 (Forged)
Outlets: Flanged or Threaded
Standards Carried: API Spec 6A, NACE MR0175
Pressure Rating: 2000 PSI, 3000 PSI, 5000 PSI
Material Class: AA, BB, CC DD, EE, FF
Temp Class: L.U, X.Y
Performance Requirement: PR1, PR2
Product Specification Level: PSL1, PSL2, PSL3, PSL3G, PSL4
Traceability: Our Model M Expanding Gate Valves are supplied with full traceability documentation for each component.
Interchangeability: 100% interchangeable with WKM Model M Expanding Gate Valve.
Application: Wellhead Assembly, Production Tree, Manifolds
Working Pressure 2000Psi

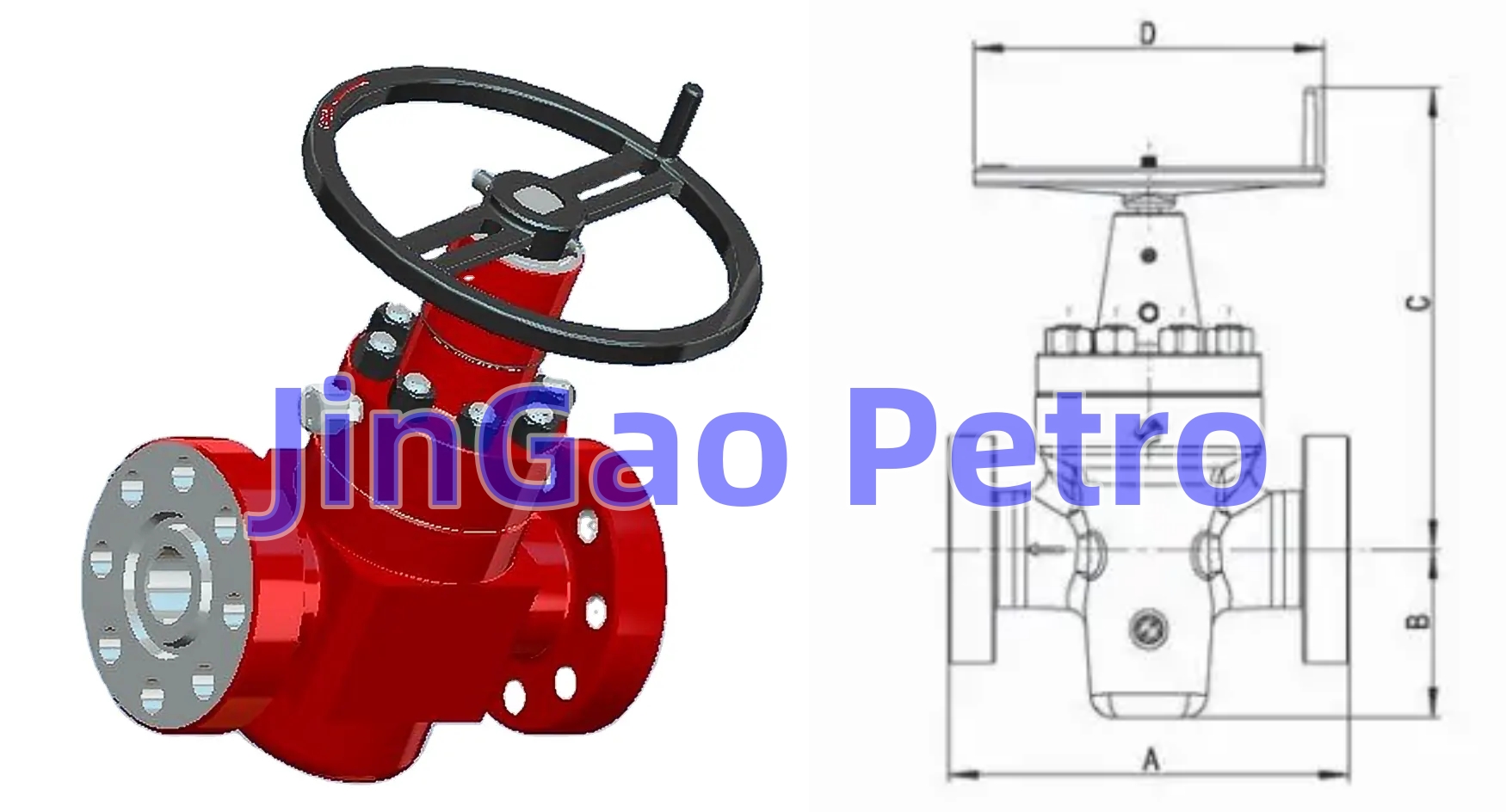

| Size | Bore(mm) | A(mm) | D(mm) | B(mm) | C(mm) | Weight(kg) |
| 2-1/16' | 52.4 | 295 | 280 | 125 | 470 | 45 |
| 2-9/16’ | 65.1 | 233 | 330 | 150 | 475 | 60 |
| 3-1/8' | 79.4 | 359 | 330 | 190 | 550 | 100 |
| 4-1/16’ | 103.2 | 435 | 405 | 435 | 425 | 160 |
Working Pressure 3000Psi
| Size | Bore(mm) | A(mm) | D(mm) | B(mm) | B(mm) | Weight(kg) |
| 2-1/16' | 52.4 | 371 | 330 | 125 | 475 | 50 |
| 2-9/16' | 65.1 | 422 | 330 | 150 | 490 | 95 |
| 3-1/8’ | 79.4 | 435 | 400 | 190 | 550 | 150 |
| 4-1/16' | 103.2 | 511 | 480 | 240 | 635 | 260 |
| 7-1/16’ | 179.4 | 714 | 760 | 355 | 615 | 260 |
Working Pressure 5000Psi
| Size | Bore(mm) | A(mm) | D(mm) | B(mm) | C(mm) | Weight(kg) |
| 2-1/16’ | 52.4 | 371 | 330 | 130 | 470 | 75 |
| 2-9/16’ | 65.1 | 422 | 330 | 150 | 550 | 105 |
| 3-1/8’ | 79.4 | 473 | 400 | 190 | 555 | 150 |
| 4-1/16’ | 103.2 | 549 | 480 | 240 | 635 | 280 |
| 7-1/16’ | 179.4 | 813 | 760 | 355 | 715 | 600 |
JinGao Petro wkm M type expanding gate valve have quality and price advantage,for the valve body,we have casting type and forge type.
500 Sets/months
Welcome cooperation:info@jingaopetro.com
