Plug Valve

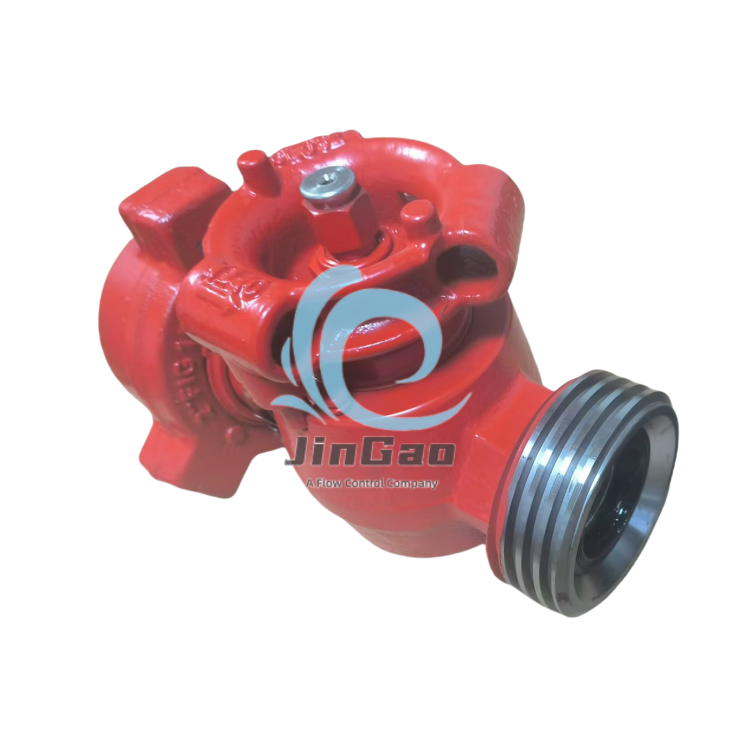

Fig1502 plug valve

1. Overview

The plug valves, forged of quality high strength alloy steel, are low torque valves based on the technologies introduced from SPM. 1'', 2'' and 3'' plug valves with rated working pressure of 6000psi (42MPa), 10000psi (70MPa), 15000psi (105MPa), and 20000psi (140MPa) are available. The end connection can be of union or of LP or TBG thread. All the plug valves are made comply with USA standard, and can be connected with other similar products in the world. The repair kits can be interchanged with the same type of valves of SPM. Various models of plug valves and relevant repair kits can work in normal temperature, low temperature or H2S environments.

2. Features

1) The repairing and maintenance of the valve body can be performed without being removed from the line, and no special tool is needed.

2) The plug valves, thread with special coating process, have excellent performance in wear and corrosion resistances.

3) Apparent open/close identification and position limiting mechanism are provided.

4) Multiple opening devices are for your option.

5) Low operating torque, easy and flexible operation.

6) Special grease has the dual function of lubricating and sealing.

3. Plug Valve-union Connection

Temperature class: -29℃-121℃ (Class PU)

-46℃-121℃ (Class PL)

Application environment: Standard low temperature H2S

Manufacturing standard: API6A & NACE MR0175

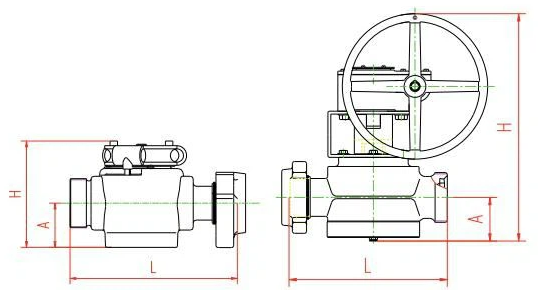

Fig1502 plug valve drawing

Parts No.	Model	Size	Work pressure (Mpa/psi)	Dimension (mm)			Connection	Actuator	Environment
Parts No.	Model	Size	Work pressure (Mpa/psi)	L	A	H	Connection	Actuator	Environment
K31101100001	SWG31-105-1×2	1''	105/15000	268	61	185	2''FIG1502(F*M)	manual	standard
K31101100004	SWG31-105-1×2	1''	105/15000	268	61	185	2''FIG1502(F*M)	pneumatic	standard
K31200800003	SWG31-42-2×2	2''	42/6000	353	88	225	FIG602(F*M)	manual	standard
K31201000001	SWG31-70-2×2	2''	70/10000	353	88	225	FIG1002(F*M)	manual	standard
K31201100001	SWG31-105-2×2	2''	105/15000	353	88	225	FIG1502(F*M)	manual	standard
K31201100003	SWG31-105-2×3	2''	105/15000	374.5	88	225	3''FIG1502(F*M)	pneumatic	standard
K31201100002	SWG31-105-2×2	2''	105/15000	353	88	/	FIG1502(F*M)	hydraulic	standard
K31201100005	SWG31-105-2×2	2''	105/15000	353	100	409	FIG1502(F*M)	manual	standard
K31201200003	SWG31-140-2×2	2''	140/20000	386	88	225	FIG2002(F*M)	manual	standard
K31300800001	SWG31-42-3×3	3''	42/6000	432	103	254	FIG602(F*M)	manual	standard
K31301000004	SWG31-70-3×3	3''	70/10000	432	103	254	FIG1002(F*M)	manual	standard
K31301100002	SWG31-105-3×3	3''	105/15000	432	103	254	FIG1502(F*M)	Wormgear	standard
K31301100001	SWG31-105-3×3	3''	105/15000	432	103	630	FIG1502(F*M)	hydraulic	standard
K31301100003	SWG31-105-3×3	3''	105/15000	432	103	/	FIG1502(F*M)	manual	standard
K31301200004	SWG31-140-3×3	3''	140/20000	562	159	489	FIG2002(F*M)	Wormgear	standard
K31351200001	SWG31-140-3×3	3''	140/20000	562	159	/	FIG2002(F*M)	hydraulic	standard
K31301200005	SWG31-140-3×3	3''	140/20000	562	159	/	FIG2002(F*M)	manual	standard
K31101000901	SWG31-70-1×2	1''	70/10000	269	61	185	2''FIG1502(F*M)	manual	H2S
K31200700901	SWG31-42-2×2	2''	42/6000	353	88	225	FIG602(F*M)	manual	H2S
K31201000901	SWG31-70-2×2	2''	70/10000	353	88	225	FIG1502(F*M)	manual	H2S
K31300800901	SWG31-42-3×3	3''	42/6000	432	103	254	FIG602(F*M)	manual	H2S
K31301000903	SWG31-70-3×3	3''	70/10000	432	103	254	FIG1502(F*M)	Wormgear	H2S
K31301000902	SWG31-70-3×3	3''	70/10000	432	103	630	FIG1502(F*M)	manual	H2S
K31301100901	SWG31-105-3×3	3''	105/15000	563	159	489	FIG2202(F*M)	manual	H2S
K31101000002	SWG31-70-1×2	1''	70/10000	268	61	185	2''FIG1502(F*M)	manual	Low Temp.
K31200800005	SWG31-42-2×2	2''	42/6000	353	201	225	FIG602(F*M)	manual	Low Temp.
K31201000902	SWG31-70-2×2	2''	70/10000	353	201	225	FIG1502(F*M)	manual	Low Temp.
K31300800002	SWG31-42-3×3	3''	42/6000	432	103	254	FIG602(F*M)	manual	Low Temp.
K31301000005	SWG31-70-3×3	3''	70/10000	432	103	254	FIG1502(F*M)	manual	Low Temp.

4. Plug Valves Thread Connection

Temperature class: -29℃-121℃ (Class PU)

Manufacturing standard: API6A

Application standard: standard

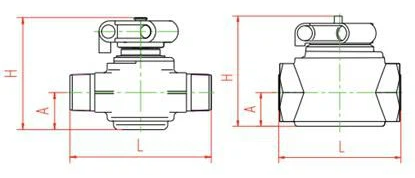

Fig1502 thread plug valve

Parts No.	Model	Size	Working pressure (Mpa/psi)	Dimension (mm)			Connection	Actuator	Environment
Parts No.	Model	Size	Working pressure (Mpa/psi)	L	A	H	Connection	Actuator	Environment
K31100800001	SWG31-42-1×2P	1''	42/6000	232	45	185	2''LP external thread	manual	standard
K31101100002	SWG31-105-1×2P	1''	105/15000	232	61	185	2''LP external thread	manual	standard
K31101100003	SWG31-105-1×2P	1''	105/15000	232	61	185	2''TBG external thread	manual	standard
K31200800001	SWG31-42-1×2B	2''	42/6000	218	76.5	198.3	2''LP inner thread	manual	standard
K31201000002	SWG31-70-2×2B	2''	70/10000	218	76.5	198.3	2''LP inner thread	manual	standard
K31201000005	SWG31-70-2×2B	2''	70/10000	228	76.5	198.3	2''TBG inner thread	manual	standard
K31301000001	SWG31-70-3×3B	3''	70/10000	316	110	314.5	3''LP inner thread	manual	standard

5. Repair Kit for Plug Valve

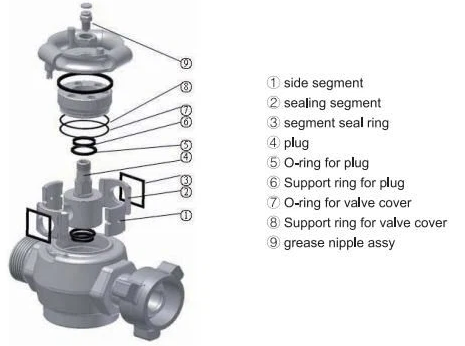

Plug Valve Repair Kit Interchangeability
Plug valve repair kits can be provided for standard service, or low temperature and sour gas condition. These repair kits are replaceable and interchangeable for Weir SPM™,
which is including plug, seal segment, side segment, elastomer seals, and grease fittings.(Also we have FMC type plug valve to replacement with FMC Brand)

SPM/SJ type plug valve repair kit

FMC ULT type plug valve repair kit

Other high pressure flow iron we can Provide
(Plug Valve,Hammer Union ,Relief Valve,Swivel Joint,Pup Joint,Pup Joint,Check Valve,Integral Fittings,Chock Valve,Ellow,Manifold,Etc)
