JinGao Petro Integral Fittings
Description

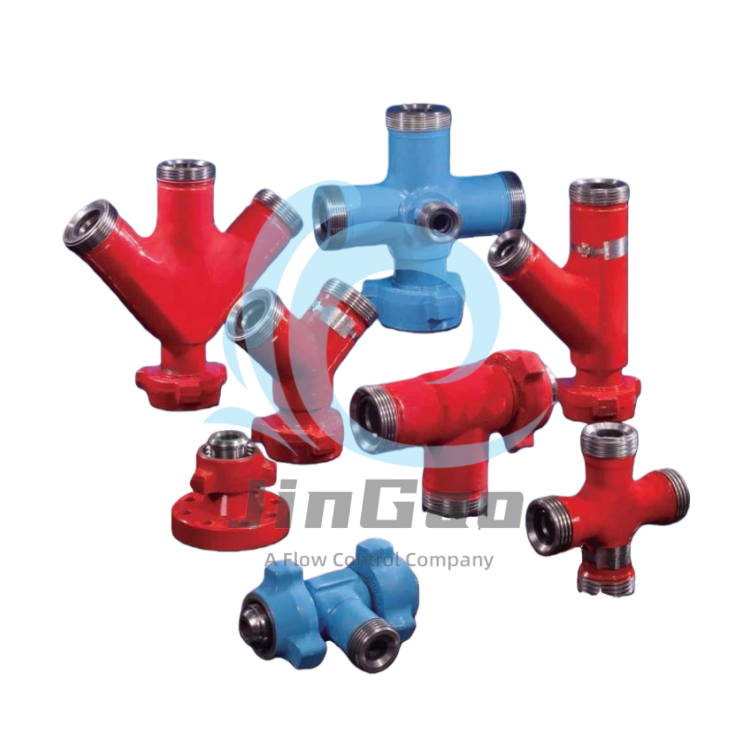

Integral fittings (Integral connector)
1. Overview
JinGao Petro provide series of high pressure integral fittings and welded fittings, including Wyes, Ells, Elbows, Tees, Crosses, Laterals and Fishtails, with sizes ranging from 2'' to 4'' and pressures from 3000psi to 20000psi (21MPa to 140MPa). The integral connections made of high strength alloy steel are all heat-treated to enhance load-bearing capacity and lengthen services lifetime. They may have union ends for easy connection with various cementing or fracturing equipment, or have a welded end connector which is designed as per API Spec 6A/16C. We can provide customized products according to customer requirements.
2. Main products introduction
Tee,Elbow,Lateral,Wye,Cross,Etc
3. Detailed products introduction

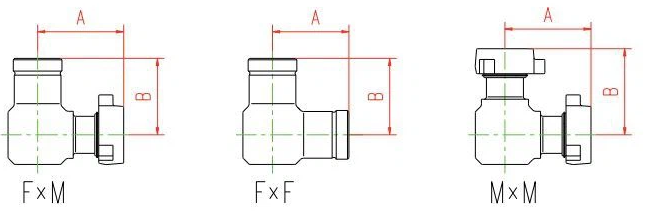

3.1 Short Elbows/L Elbows
|
Model |
Size |
W.P. (MPa/psi) |
Dimension(mm) |
Connection Type |
Environment |
|
|
A |
B |
|||||
|
SWG42-42-2 |
2'' |
42/6000 |
154 |
154 |
FIG602(F*M), FIG602(F*F), FIG602(M*M) |
Standard |
|
SWG42-42-3 |
3'' |
42/6000 |
214 |
214 |
FIG602(F*M), FIG602(F*F), FIG602(M*M) |
Standard |
|
SWG42-42-4 |
4'' |
42/6000 |
214 |
214 |
FIG602(F*M), FIG602(F*F), FIG602(M*M) |
Standard |
|
SWG42-70-2 |
2'' |
70/10000 |
154 |
154 |
FIG1002(F*M), FIG1002(F*F), FIG1002(M*M) |
Standard |
|
SWG42-70-3 |
3'' |
70/10000 |
214 |
214 |
FIG1002(F*M), FIG1002(F*F), FIG1002(M*M) |
Standard |
|
SWG42-70-4 |
4'' |
70/10000 |
214 |
214 |
FIG1002(F*M), FIG1002(F*F), FIG1002(M*M) |
Standard |
|
SWG42-105-2 |
2'' |
105/15000 |
154 |
154 |
FIG1502(F*M), FIG1502(F*F), FIG1502(M*M) |
Standard |
|
SWG42-105-3 |
3'' |
105/15000 |
214 |
214 |
FIG1502(F*M), FIG1502(F*F), FIG1502(M*M) |
Standard |
|
SWG42-105-4 |
4'' |
105/15000 |
214 |
214 |
FIG1502(F*M), FIG1502(F*F), FIG1502(M*M) |
Standard |
|
SWG42-140-2 |
2'' |
140/20000 |
185 |
154 |
FIG2002(F*M), FIG2002(F*F), FIG2002(M*M) |
Standard |
|
SWG42-140-3 |
3'' |
140/20000 |
266.5 |
266.5 |
FIG2002(F*M), FIG2002(F*F), FIG2002(M*M) |
Standard |
|
SWG42-42-2 |
2'' |
42/6000 |
154 |
154 |
FIG602(F*M), FIG602(F*F), FIG602(M*M) |
H2S |
|
SWG42-42-3 |
3'' |
42/6000 |
214 |
214 |
FIG602(F*M), FIG602(F*F), FIG602(M*M) |
H2S |
|
SWG42-42-4 |
4'' |
42/6000 |
214 |
214 |
FIG602(F*M), FIG602(F*F), FIG602(M*M) |
H2S |
|
SWG42-52-2 |
2'' |
52/75000 |
154 |
154 |
FIG1002(F*M), FIG1002(F*F), FIG1002(M*M) |
H2S |
|
SWG42-52-3 |
3'' |
52/75000 |
214 |
214 |
FIG1002(F*M), FIG1002(F*F), FIG1002(M*M) |
H2S |
|
SWG42-52-4 |
4'' |
52/75000 |
214 |
214 |
FIG1002(F*M), FIG1002(F*F), FIG1002(M*M) |
H2S |
|
SWG42-70-2 |
2'' |
70/10000 |
154 |
154 |
FIG1502(F*M), FIG1502(F*F), FIG1502(M*M) |
H2S |
|
SWG42-70-3 |
3'' |
70/10000 |
214 |
214 |
FIG1502(F*M), FIG1502(F*F), FIG1502(M*M) |
H2S |
|
SWG42-70-4 |
4'' |
70/10000 |
214 |
214 |
FIG1502(F*M), FIG1502(F*F), FIG1502(M*M) |
H2S |
|
SWG42-105-2 |
2'' |
105/15000 |
185 |
154 |
FIG2002(F*M), FIG2002(F*F), FIG2002(M*M) |
H2S |
|
SWG42-105-3 |
3'' |
105/15000 |
266.5 |
266.5 |
FIG2002(F*M), FIG2002(F*F), FIG2002(M*M) |
H2S |
Note: End connection sizes can be changed as per customers' requirements. B-female thread, P-male thread, M-male connection (spherical end), F-female connection (threaded end).

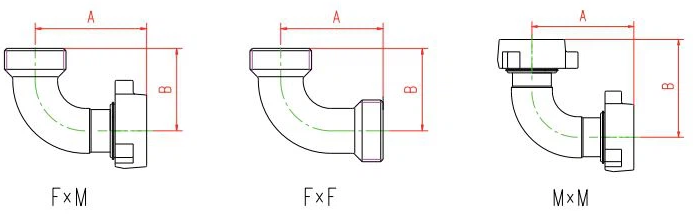

3.2 90°Long Elbows
|
Model |
Size |
W.P. (MPa/psi) |
Dimension(mm) |
Connection Type |
Environment |
|
|
A |
B |
|||||
|
SWG42-42-2C |
2'' |
42/6000 |
162 |
171 |
FIG602(F*M), FIG602(F*F), FIG602(M*M) |
Standard |
|
SWG42-42-3C |
3'' |
42/6000 |
239 |
202 |
FIG602(F*M), FIG602(F*F), FIG602(M*M) |
Standard |
|
SWG42-42-4C |
4'' |
42/6000 |
260 |
250 |
FIG602(F*M), FIG602(F*F), FIG602(M*M) |
Standard |
|
SWG42-70-2C |
2'' |
70/10000 |
162 |
171 |
FIG1002(F*M), FIG1002(F*F), FIG1002(M*M) |
Standard |
|
SWG42-70-3C |
3'' |
70/10000 |
239 |
202 |
FIG1002(F*M), FIG1002(F*F), FIG1002(M*M) |
Standard |
|
SWG42-70-4C |
4'' |
70/10000 |
260 |
250 |
FIG1002(F*M), FIG1002(F*F), FIG1002(M*M) |
Standard |
|
SWG42-105-2C |
2'' |
105/15000 |
162 |
171 |
FIG1502(F*M), FIG1502(F*F), FIG1502(M*M) |
Standard |
|
SWG42-105-3C |
3'' |
105/15000 |
239 |
202 |
FIG1502(F*M), FIG1502(F*F), FIG1502(M*M) |
Standard |
|
SWG42-105-4C |
4'' |
105/15000 |
260 |
250 |
FIG1502(F*M), FIG1502(F*F), FIG1502(M*M) |
Standard |
|
SWG42-140-3C |
3'' |
140/20000 |
279 |
270 |
FIG2002(F*M), FIG2002(F*F), FIG2002(M*M) |
Standard |
|
SWG42-42-2C |
2'' |
42/6000 |
162 |
171 |
FIG602(F*M), FIG602(F*F), FIG602(M*M) |
H2S |
|
SWG42-42-3C |
3'' |
42/6000 |
239 |
202 |
FIG602(F*M), FIG602(F*F), FIG602(M*M) |
H2S |
|
SWG42-42-4C |
4'' |
42/6000 |
260 |
250 |
FIG602(F*M), FIG602(F*F), FIG602(M*M) |
H2S |
|
SWG42-52-2C |
2'' |
52/75000 |
162 |
171 |
FIG1002(F*M), FIG1002(F*F), FIG1002(M*M) |
H2S |
|
SWG42-52-3C |
3'' |
52/75000 |
239 |
202 |
FIG1002(F*M), FIG1002(F*F), FIG1002(M*M) |
H2S |
|
SWG42-52-4C |
4'' |
52/75000 |
259 |
239 |
FIG1002(F*M), FIG1002(F*F), FIG1002(M*M) |
H2S |
|
SWG42-70-2C |
2'' |
70/10000 |
162 |
171 |
FIG1502(F*M), FIG1502(F*F), FIG1502(M*M) |
H2S |
|
SWG42-70-3C |
3'' |
70/10000 |
239 |
202 |
FIG1502(F*M), FIG1502(F*F), FIG1502(M*M) |
H2S |
|
SWG42-70-4C |
4'' |
70/10000 |
260 |
250 |
FIG1502(F*M), FIG1502(F*F), FIG1502(M*M) |
H2S |
|
SWG42-105-3C |
3'' |
105/15000 |
279 |
270 |
FIG2202(F*M), FIG2202(F*F), FIG2202(M*M) |
H2S |
Note: when order above materials, please provide detailed description, model number, size, working pressure, end connection type (end connection as per drawings), and working environment.

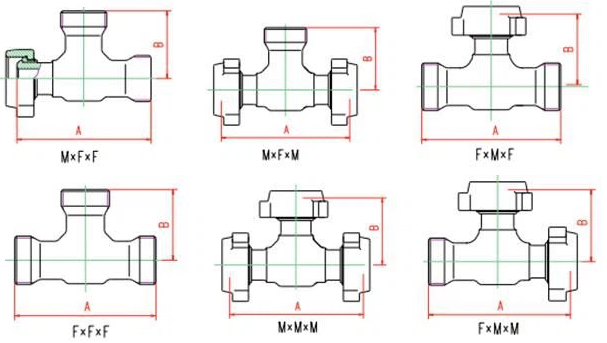

3.3 Tees
|
Model |
Size |
W.P. (MPa/psi) |
Dimension(mm) |
Connection Type |
Environment |
|
|
A |
B |
|||||
|
SWG43-42-2 |
2'' |
42/6000 |
308 |
154 |
FIG602(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
Standard |
|
SWG43-42-3 |
3'' |
42/6000 |
428 |
214 |
FIG602(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
Standard |
|
SWG43-42-4 |
4'' |
42/6000 |
428 |
214 |
FIG602(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
Standard |
|
SWG43-70-2 |
2'' |
70/10000 |
308 |
154 |
FIG1002(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
Standard |
|
SWG43-70-3 |
3'' |
70/10000 |
428 |
214 |
FIG1002(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
Standard |
|
SWG43-70-4 |
4'' |
70/10000 |
428 |
214 |
FIG1002(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
Standard |
|
SWG43-105-2 |
2'' |
105/15000 |
308 |
154 |
FIG1502(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
Standard |
|
SWG43-105-3 |
3'' |
105/15000 |
428 |
214 |
FIG1502(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
Standard |
|
SWG43-105-4 |
4'' |
105/15000 |
428 |
214 |
FIG1502(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
Standard |
|
SWG43-140-2 |
2'' |
140/20000 |
346 |
185 |
FIG2002(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
Standard |
|
SWG43-140-3 |
3'' |
140/20000 |
533 |
266.5 |
FIG2002(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
Standard |
|
SWG43-42-2 |
2'' |
42/6000 |
308 |
154 |
FIG602(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
H2S |
|
SWG43-42-3 |
3'' |
42/6000 |
428 |
214 |
FIG602(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
H2S |
|
SWG43-42-4 |
4'' |
42/6000 |
428 |
214 |
FIG602(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
H2S |
|
SWG43-52-2 |
2'' |
52/75000 |
308 |
154 |
FIG1002(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
H2S |
|
SWG43-52-3 |
3'' |
52/75000 |
428 |
214 |
FIG1002(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
H2S |
|
SWG43-52-4 |
4'' |
52/75000 |
428 |
214 |
FIG1002(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
H2S |
|
SWG43-70-2 |
2'' |
70/10000 |
308 |
154 |
FIG1502(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
H2S |
|
SWG43-70-3 |
3'' |
70/10000 |
428 |
214 |
FIG1502(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
H2S |
|
SWG43-70-4 |
4'' |
70/10000 |
428 |
214 |
FIG1502(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
H2S |
|
SWG43-105-2 |
2'' |
105/15000 |
346 |
185 |
FIG2202(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
H2S |
|
SWG43-105-3 |
3'' |
105/15000 |
533 |
266.5 |
FIG2202(M*F*F, M*F*M, F*M*F, F*F*F, M*M*M, F*M*M) |
H2S |
Note: when order above materials, please provide detailed description, model number, size, working pressure, end connection type (end connection as per drawings), and working environment.

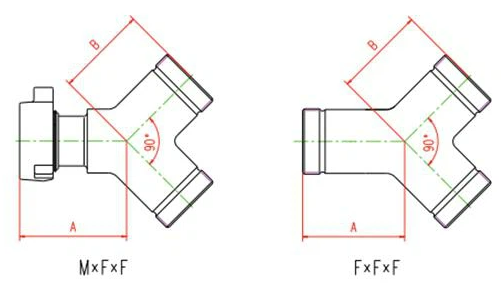

3.4 Wyes
|
Model |
Size |
Work pressure (MPa/psi) |
Dimension(mm) |
Connection Type |
Environment |
|
|
A |
B |
|||||
|
SWG45-42-2 |
2'' |
42/6000 |
133 |
127 |
FIG602(M*F*F, F*F*F) |
Standard |
|
SWG45-42-3 |
3'' |
42/6000 |
197 |
190 |
FIG602(M*F*F, F*F*F) |
Standard |
|
SWG45-42-4 |
4'' |
42/6000 |
197 |
197 |
FIG602(M*F*F, F*F*F) |
Standard |
|
SWG45-70-2 |
2'' |
70/10000 |
133 |
127 |
FIG1002(M*F*F, F*F*F) |
Standard |
|
SWG45-70-3 |
3'' |
70/10000 |
197 |
190 |
FIG1002(M*F*F, F*F*F) |
Standard |
|
SWG45-70-4 |
4'' |
70/10000 |
197 |
197 |
FIG1002(M*F*F, F*F*F) |
Standard |
|
SWG45-105-2 |
2'' |
105/15000 |
133 |
127 |
FIG1502(M*F*F, F*F*F) |
Standard |
|
SWG45-105-3 |
3'' |
105/15000 |
197 |
190 |
FIG1502(M*F*F, F*F*F) |
Standard |
|
SWG45-105-4 |
4'' |
105/15000 |
250 |
240 |
FIG1502(M*F*F, F*F*F) |
Standard |
|
SWG45-140-2 |
2'' |
140/20000 |
148 |
127 |
FIG2002(M*F*F, F*F*F) |
Standard |
|
SWG45-140-3 |
3'' |
140/20000 |
270 |
270 |
FIG2002(M*F*F, F*F*F) |
Standard |
|
SWG45-42-2 |
2'' |
42/6000 |
133 |
127 |
FIG602(M*F*F, F*F*F) |
H2S |
|
SWG45-42-3 |
3'' |
42/6000 |
197 |
190 |
FIG602(M*F*F, F*F*F) |
H2S |
|
SWG45-42-4 |
4'' |
42/6000 |
197 |
197 |
FIG602(M*F*F, F*F*F) |
H2S |
|
SWG45-52-2 |
2'' |
52/7500 |
133 |
127 |
FIG1002(M*F*F, F*F*F) |
H2S |
|
SWG45-52-3 |
3'' |
52/7500 |
197 |
190 |
FIG1002(M*F*F, F*F*F) |
H2S |
|
SWG45-52-4 |
4'' |
52/7500 |
197 |
197 |
FIG1002(M*F*F, F*F*F) |
H2S |
|
SWG45-70-2 |
2'' |
70/10000 |
133 |
127 |
FIG1502(M*F*F, F*F*F) |
H2S |
|
SWG45-70-3 |
3'' |
70/10000 |
197 |
190 |
FIG1502(M*F*F, F*F*F) |
H2S |
|
SWG45-70-4 |
4'' |
70/10000 |
250 |
240 |
FIG1502(M*F*F, F*F*F) |
H2S |
Note: when order above materials, please provide detailed description, model number, size, working pressure, end connection type (end connection as per drawings), and working environment.
3.5 Three-dimensional Wyes (welded connectors)
|
Model |
Size |
W.P. (MPa/psi) |
Dimension(mm) |
Connection Type |
Condition |
||
|
A |
B |
C |
|||||
|
SWG45-105-2L |
2'' |
105/15000 |
133 |
127 |
120 |
FIG1502 |
Standard |
|
SWG45-105-3L |
3'' |
105/15000 |
197 |
190 |
150 |
FIG1502 |
Standard |
|
SWG45-105-4L |
4'' |
105/15000 |
197 |
190 |
150 |
FIG1502 |
Standard |
|
SWG45-140-3L |
3'' |
140/20000 |
270 |
270 |
181 |
FIG2002 |
Standard |
Note: when order above materials, please provide detailed description, model number, size, working pressure, end connection type (end connection as per drawings), and working environment.

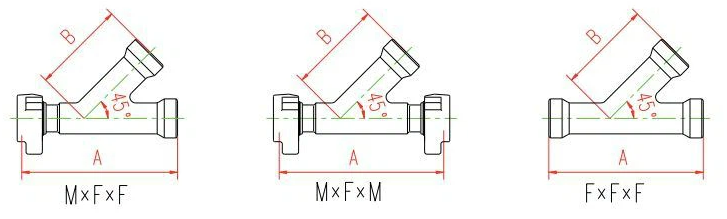

3.6 Laterals (welded connectors)
|
Model |
Size |
W.P. (MPa/psi) |
Dimension(mm) |
Connection Type |
Environment |
|
|
A |
B |
|||||
|
SWG44-42-2 |
2'' |
42/6000 |
400 |
250 |
FIG602(M*F*F, M*F*M, F*F*F) |
Standard |
|
SWG44-42-3 |
3'' |
42/6000 |
533 |
355 |
FIG602(M*F*F, M*F*M, F*F*F) |
Standard |
|
SWG44-42-4 |
4'' |
42/6000 |
533 |
355 |
FIG602(M*F*F, M*F*M, F*F*F) |
Standard |
|
SWG44-70-2 |
2'' |
70/10000 |
400 |
250 |
FIG1002(M*F*F, M*F*M, F*F*F) |
Standard |
|
SWG44-70-3 |
3'' |
70/10000 |
533 |
355 |
FIG1002(M*F*F, M*F*M, F*F*F) |
Standard |
|
SWG44-70-4 |
4'' |
70/10000 |
533 |
355 |
FIG1002(M*F*F, M*F*M, F*F*F) |
Standard |
|
SWG44-105-2 |
2'' |
105/15000 |
400 |
250 |
FIG1502(M*F*F, M*F*M, F*F*F) |
Standard |
|
SWG44-105-3 |
3'' |
105/15000 |
533 |
355 |
FIG1502(M*F*F, M*F*M, F*F*F) |
Standard |
|
SWG44-105-4 |
4'' |
105/15000 |
533 |
355 |
FIG1502(M*F*F, M*F*M, F*F*F) |
Standard |
|
SWG44-140-3 |
3'' |
140/20000 |
533 |
350 |
FIG2002(M*F*F, M*F*M, F*F*F) |
Standard |
|
SWG44-42-2 |
2'' |
42/6000 |
400 |
250 |
FIG602(M*F*F, M*F*M, F*F*F) |
H2S |
|
SWG44-42-3 |
3'' |
42/6000 |
533 |
355 |
FIG602(M*F*F, M*F*M, F*F*F) |
H2S |
|
SWG44-42-4 |
4'' |
42/6000 |
533 |
355 |
FIG602(M*F*F, M*F*M, F*F*F) |
H2S |
|
SWG44-52-2 |
2'' |
52/7500 |
400 |
250 |
FIG1002(M*F*F, M*F*M, F*F*F) |
H2S |
|
SWG44-52-3 |
3'' |
52/7500 |
533 |
355 |
FIG1002(M*F*F, M*F*M, F*F*F) |
H2S |
|
SWG44-52-4 |
4'' |
52/7500 |
533 |
355 |
FIG1002(M*F*F, M*F*M, F*F*F) |
H2S |
|
SWG44-70-2 |
2'' |
70/10000 |
400 |
250 |
FIG1502(M*F*F, M*F*M, F*F*F) |
H2S |
|
SWG44-70-3 |
3'' |
70/10000 |
533 |
355 |
FIG1502(M*F*F, M*F*M, F*F*F) |
H2S |
|
SWG44-70-4 |
4'' |
70/10000 |
533 |
355 |
FIG1502(M*F*F, M*F*M, F*F*F) |
H2S |
Note: when the working pressure is up to 140MPa, the Laterals angle will be 60°, not 45°anymore, so the working pressure will be ensured. When order above materials, please provide detailed description, model number, size, working pressure, end connection type (end connection as per drawings), and working environment.
3.7 Three-dimensional Laterals with extra connection (welded connectors)
|
Model |
Size |
W.P. (MPa/psi) |
Dimension(mm) |
Connection Type |
Condition |
||
|
A |
B |
C |
|||||
|
SWG44-105-2L |
2'' |
105/15000 |
400 |
250 |
120 |
FIG1502 |
Standard |
|
SWG44-105-3L |
3'' |
105/15000 |
533 |
356 |
150 |
FIG1502 |
Standard |
|
SWG44-105-3L |
3'' |
105/15000 |
533 |
356 |
150 |
FIG1502 |
H2S |
|
SWG44-105-4L |
4'' |
105/15000 |
533 |
356 |
150 |
FIG1502 |
Standard |
|
SWG44-140-3L |
3'' |
140/20000 |
533 |
350 |
181 |
FIG2002 |
Standard |
|
SWG44-140-3L |
3'' |
140/20000 |
533 |
350 |
181 |
FIG2002 |
H2S |
Note: when order above materials, please provide detailed description, model number, size, working pressure, end connection type (end connection as per drawings), and working environment.

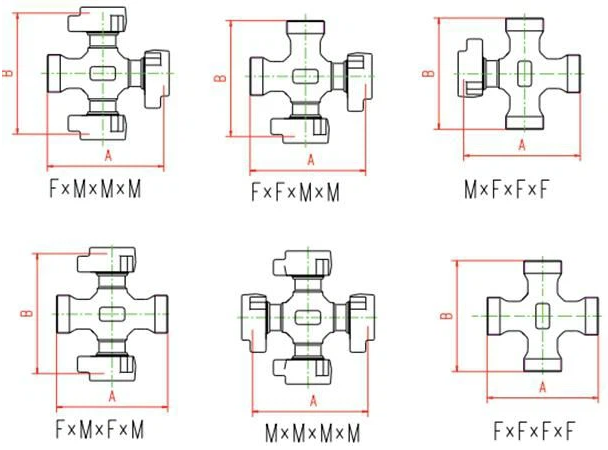

3.8 Crosses (welded connectors)
|
Model |
Size |
W.P. (MPa/psi) |
Dimension |
Connection Type |
Condition |
|
|
A |
B |
|||||
|
SWG46-42-2 |
2'' |
42/6000 |
308 |
308 |
FIG602(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M, M*M*M*M, F*F*F*F) |
Standard |
|
SWG46-42-3 |
3'' |
42/6000 |
428 |
428 |
FIG602(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
Standard |
|
SWG46-42-4 |
4'' |
42/6000 |
428 |
428 |
FIG602(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
Standard |
|
SWG46-70-2 |
2'' |
70/10000 |
308 |
308 |
FIG1002(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M, M*M*M*M) |
Standard |
|
SWG46-70-3 |
3'' |
70/10000 |
428 |
428 |
FIG1002(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
Standard |
|
SWG46-70-4 |
4'' |
70/10000 |
428 |
428 |
FIG1002(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
Standard |
|
SWG46-105-2 |
2'' |
105/15000 |
308 |
308 |
FIG1502(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M, F*F*F*F) |
Standard |
|
SWG46-105-3 |
3'' |
105/15000 |
428 |
428 |
FIG1502(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
Standard |
|
SWG46-105-4 |
4'' |
105/15000 |
428 |
428 |
FIG1502(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
Standard |
|
SWG46-140-2 |
2'' |
140/20000 |
346 |
346 |
FIG2002(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
Standard |
|
SWG46-140-3 |
3'' |
140/20000 |
533 |
533 |
FIG2002(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
Standard |
|
SWG46-42-2 |
2'' |
42/6000 |
308 |
308 |
FIG602(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
H2S |
|
SWG46-42-3 |
3'' |
42/6000 |
428 |
428 |
FIG602(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
H2S |
|
SWG46-42-4 |
4'' |
42/6000 |
428 |
428 |
FIG602(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
H2S |
|
SWG46-52-2 |
2'' |
52/7500 |
308 |
308 |
FIG1002(F*M*M*M, F*F*M*M, M*F*F*F, F*F*F*F) |
H2S |
|
SWG46-52-3 |
3'' |
52/7500 |
428 |
428 |
FIG1002(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
H2S |
|
SWG46-52-4 |
4'' |
52/7500 |
428 |
428 |
FIG1002(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
H2S |
|
SWG46-70-2 |
2'' |
70/10000 |
308 |
308 |
FIG1502(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
H2S |
|
SWG46-70-3 |
3'' |
70/10000 |
428 |
428 |
FIG1502(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
H2S |
|
SWG46-70-4 |
4'' |
70/10000 |
428 |
428 |
FIG1502(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
H2S |
|
SWG46-105-2 |
2'' |
105/15000 |
346 |
346 |
FIG2202(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
H2S |
|
SWG46-105-3 |
3'' |
105/15000 |
533 |
533 |
FIG2202(F*M*M*M, F*F*M*M, M*F*F*F, F*M*F*M) |
H2S |
Note: when order above materials, please provide detailed description, model number, size, working pressure, end connection type (end connection as per drawings), and working environment.
3.9 Three-dimensional Crosses (welded connectors)
|
Model |
Size |
W.P. (MPa/psi) |
Dimension(mm) |
Connection Type |
Condition |
||
|
A |
B |
C |
|||||
|
SWG48-105-2L |
2'' |
105/15000 |
308 |
308 |
120 |
FIG1502 |
Standard |
|
SWG48-105-3L |
3'' |
105/15000 |
428 |
428 |
150 |
FIG1502 |
Standard |
|
SWG48-105-4L |
4'' |
105/15000 |
428 |
428 |
150 |
FIG1502 |
Standard |
|
SWG48-140-3L |
3'' |
140/20000 |
533 |
533 |
181 |
FIG2002 |
Standard |
Note: when order above materials, please provide detailed description, model number, size, working pressure, end connection type (end connection as per drawings), and working environment.
3.10 Fishtails (Four-way laterals)
|
Model |
Size |
W.P. (MPa/psi) |
Dimension(mm) |
Connection Type |
Condition |
|
|
A |
B |
|||||
|
SWG47-42-2 |
2'' |
42/6000 |
513 |
305 |
FIG602(M*F*F*F) |
Standard |
|
SWG47-42-3 |
3'' |
42/6000 |
533 |
355 |
FIG602(M*F*F*F) |
Standard |
|
SWG47-42-4 |
4'' |
42/6000 |
533 |
355 |
FIG602(M*F*F*F) |
Standard |
|
SWG47-70-2 |
2'' |
70/10000 |
513 |
305 |
FIG1002(M*F*F*F) |
Standard |
|
SWG47-70-3 |
3'' |
70/10000 |
533 |
355 |
FIG1002(M*F*F*F) |
Standard |
|
SWG47-70-4 |
4'' |
70/10000 |
533 |
355 |
FIG1002(M*F*F*F) |
Standard |
|
SWG47-105-2 |
2'' |
105/15000 |
513 |
305 |
FIG1502(M*F*F*F) |
Standard |
|
SWG47-105-3 |
3'' |
105/15000 |
533 |
355 |
FIG1502(M*F*F*F) |
Standard |
|
SWG47-105-4 |
4'' |
105/15000 |
533 |
355 |
FIG1502(M*F*F*F) |
Standard |
|
SWG47-140-2 |
2'' |
140/20000 |
370 |
185 |
FIG2002(M*F*F*F) |
Standard |
|
SWG47-140-3 |
3'' |
140/20000 |
533 |
350 |
FIG2002(M*F*F*F) |
Standard |
Note: Please provide detailed description, model number, size, working pressure, end connection type (end connection as per drawings), and working environment.when order above materials
JinGao Petro also provide:
Plug Valve and repair kit,Hammer Union ,Relief Valve,Swivel Joint and repair kit,Pup Joint,Pup Joint,Check Valve,Integral Fittings,Chock Valve,Ellow,Manifold,Etc.
